SCH 40 Spigot Dimensions Nyloplast Detail

Filename:
SCH 40 Spigot Dimensions Nyloplast Detail.pdf

Download Document (pdf) View in Browser
SCH 40 Spigot Dimensions Nyloplast Detail

This document is the SCH 40 Spigot Dimensions Nyloplast Detail. Sizes, dimensions and spigot illustration shown.

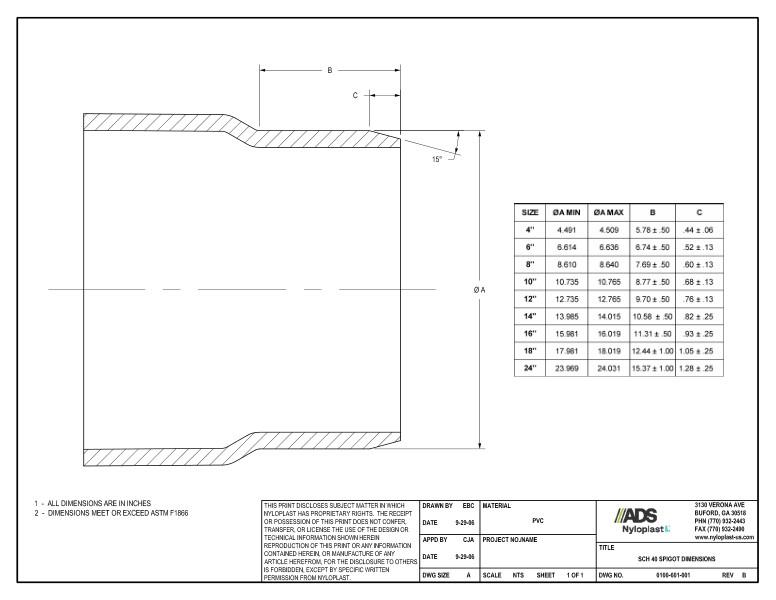

Sizes 4” to 24” are listed in the chart with corresponding A MIN, B MIN, B & C lengths. An illustration showing the A/B/C dimensions is provided.

SCH 40 Spigot Dimensions Nyloplast Detail
