102 Positive Projection Embankment Detail

This document is the 102 Positive Projection Embankment Detail. Embankment detail, cover chart with notes provide descriptions and measurements.

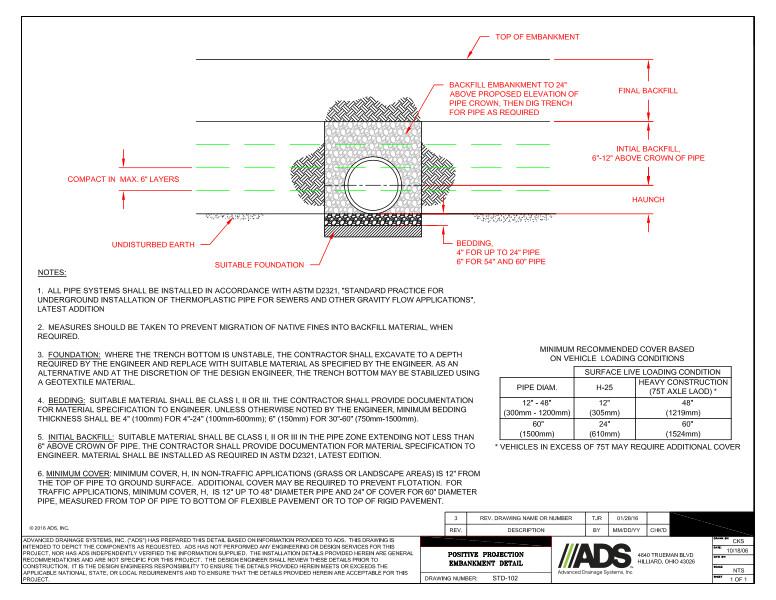

The embankment detail shows top of embankment, undisturbed earth, final backfill, haunch, initial backfill, bedding, suitable foundation and various pipe diameters.

A chart for minimum recommended cover based on vehicle loading conditions uses pipe diameter. For surface loading condition, H-25 and Heavy Construction (75T axle load) determines measurements. Vehicles in excess of 75T may require additional cover.

Note 1 states that all pipe systems shall be installed in accordance with ASTM D2321. Note 2 says that measures should be taken to prevent migration of native fines into backfill material. Note 3 explains that the foundation is based on where the trench bottom is unstable. per the engineer, the trench bottom may be stabilized using a geotextile material. Note 4 is about bedding and suitable material, minimum bedding thickness shall be 4” for 4”-24” or 6” for 30”-60”. Note 5 clarifies that the initial backfill should be of suitable material in the pipe zone extending not less than 6” above the crown of pipe. Note 6 states that minimum cover for non-traffic applications is 12” from the top of pipe to ground surface. Additional cover may be required to prevent flotation. For traffic applications, minimum cover is 12” up to 48” diameter pipe and 24” of cover for 60” diameter pipe, measured from top of pipe to bottom of flexible pavement or to top of rigid pavement.
