STD 1112D Inserta Tee MultiFit for IPS & SCH40 Lateral Connections

Filename:
STD 1112D Inserta Tee MultiFit for IPS & SCH40 Lateral Connections.dwg

STD 1112D  Inserta Tee MultiFit for IPS & SCH40 Lateral Connections

This document explains the STD 1112D Inserta Tee MultiFit for IPS & SCH40 Lateral Connections. A detail of the Inserta Tee, part number chart and configuration options provided.

Inserta Tee MultiFits are made for a specific lateral pipe type and size and fits a size range of a specific mainline type.

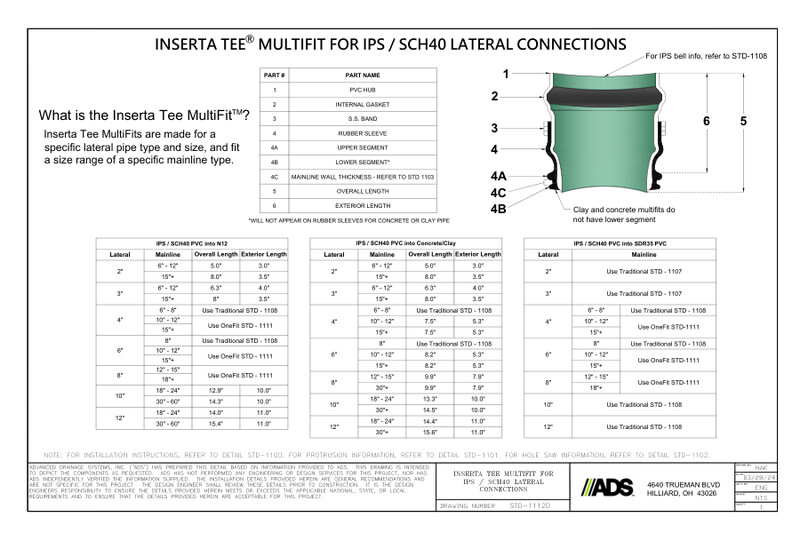

The figure shows the Inserta Tee Multifit. A table has the part number and part name shown in the detail. Clay and concrete multifits do not have lower segments.

The configuration options chart shows the size requirements for IPS & SCH40 into N12, IPS & SCH40 PVC into concrete/clay, IPS & SCH40 PVC into SDR35 PVC.

A note to access further information is provided.
