Drain Basin with Outlet Weir for Stormtech Nyloplast Detail

Filename:
Drain Basin with Outlet Weir for Stormtech Nyloplast Detail.dwg

Drain Basin with Outlet Weir for Stormtech Nyloplast Detail

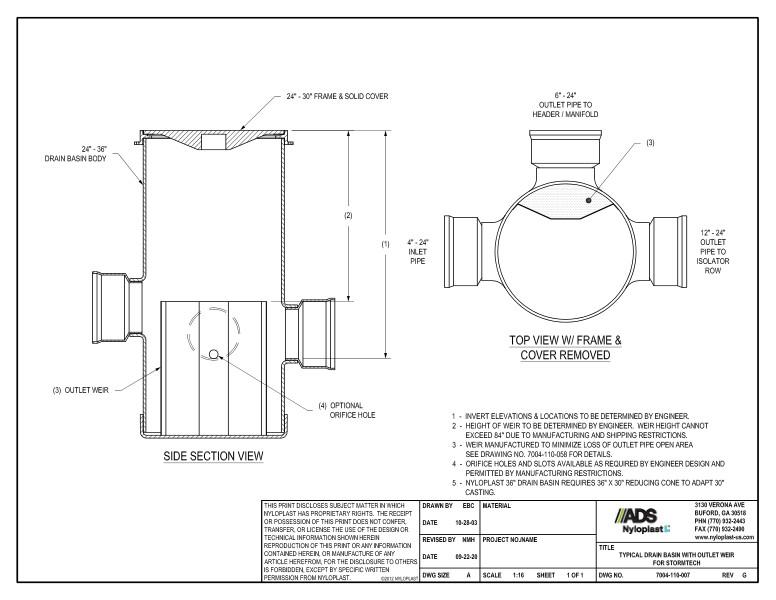

This document is the Drain Basin with Outlet Weir for Stormtech Nyloplast Detail. Dimensions and nyloplast illustration shown.

The side section view show 24” – 30” frame & solid cover, drain basin body, outlet weir and optional orifice hole. Top view with frame and cover removed details the outlet pipe to header/manifold, inlet pipe and outlet pipe to isolator row.

Note 1 states that invert elevations and locations to be determined by engineer. Note 2 directs height of weir to be determined by the engineer. Note 3 notes that weir manufactured to minimize loss of outlet pipe open are. Note 4 states that orifice holes and slots available as required. Note 5 directs Nyloplast 36” drain basin requires 36” x 30” reducing cone to adapt 30” casting.
