12" HP Elbow - 45 Degree Nyloplast Detail
Filename:
12" HP Elbow - 45 Degree Nyloplast Detail.pdf
![12" HP Elbow - 45 Degree Nyloplast Detail](https://assets.adspipe.com/m/37e7a0d133f9a3be/webimage-12-HP-Elbow-45-Degree-Nyloplast-Detail.jpg)

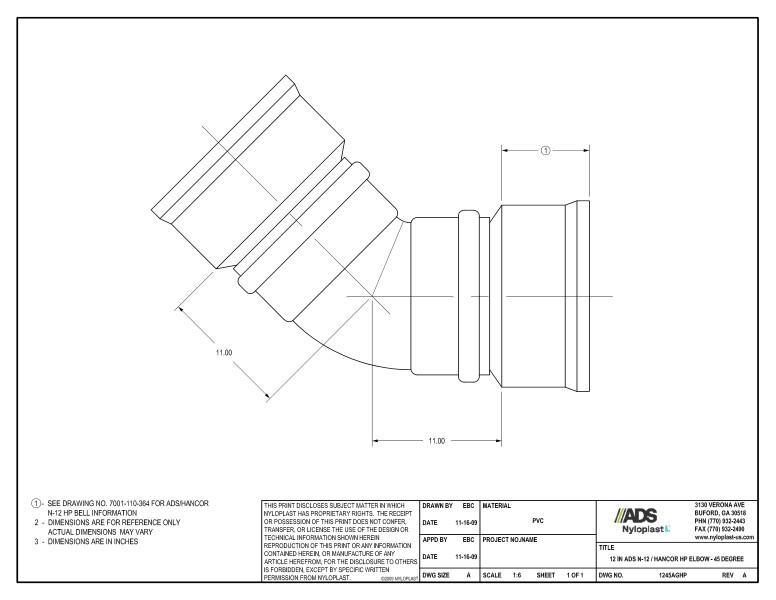

This document is the 12” HP Elbow – 45 Degree Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references ADS/Hancor N-12 HP Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
