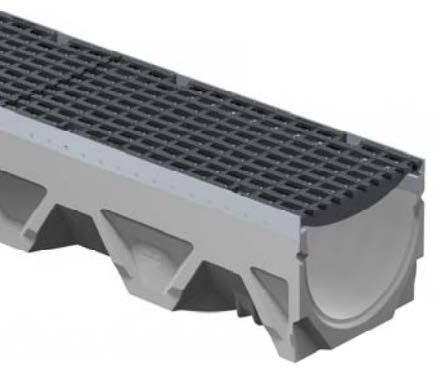

BG-FILCOTEN® Channel Drain

BG-Filcoten is engineered from a fiber-reinforced High Performance Concrete (HPC) to make a superior trench drain, which is offered in neutral and pre-sloped segments in a variety of sizes. BG-Filcoten is suitable for handling high-load capacities from pedestrian traffic to railway stations, industrial warehouses and parking lots.

Contact a Pro for Pricing

Product Details Product Details

Documentation Documentation

Product Specifications

Type	Tec 100	Pro V 200	Pro V 300
Channels	20 pre-sloped @ 0.5% plus 4 neutrals - galvanized steel rail	4 neutrals - galvanized steel rail	4 neutrals - galvanized steel rail
Max Flow Rates	152 gpm (0.3 cfs)	678 gpm (1.5 cfs)	1,349 gpm (3.0 cfs)
Inverts	5.31”-9.65” (135-245 mm)	10.43”-14.37” (265-365 mm)	14.17”-18.11” (360-460 mm)

Product Details

Features and Benefits

High-performance concrete body designed for heavy-duty industrial and commercial applications
Galvanized steel rails and ductile iron grates (Class E)
Multiple channel size options for various design
Requirements and standards 4” (100 mm) sloped channels up to 68’ (20.7 m)
8” and 12” (200 and 300 mm) stepped neutrals
Interchangeable modular components and made to stock and ready to ship and fast lead times

For more information regarding BG-Filcoten, refer to ndspro.com.
