Universal Inline Drain Size | |||
---|---|---|---|
8" | 12" | 24" | |
Pipe Size Connections | 4"-8" | 4"-10"** | 12"-24"*** |
Overall Height | 8.25" | 10.0" | 14.25" |
Added Height to Pipe | 5.25" | 7.75" | 5.75" |
Width (Pipe Connection) | 9.75" | 12.0" | 29.0" |
Width (Grate Connection) | 8.4" | 12.5" | 24.8" |
Approx. Weight | 4 lbs. | 6.5 lbs. | 45 lbs. |
Joining System | Gasketed / Solvent Weld* | Gasketed / Solvent Weld* | Gasketed |
Joint Performance | Watertight (ASTM D3212) | Watertight (ASTM D3212) | Watertight (ASTM D3212) |
Material Specification | ASTM D1784 cell class 12454 | ASTM D1784 cell class 12455 | ASTM D3350 |
![]() | ![]() | ![]() |
Dimensions are for reference only. Actual dimensions may vary.
*Solvent weld connections required for watertight joints on PVC connections
**12" connection for N-12 pipe available as a drop in connection
***4"-10" connections available when applying the 12" Universal Inline Drain to the telescoping feature

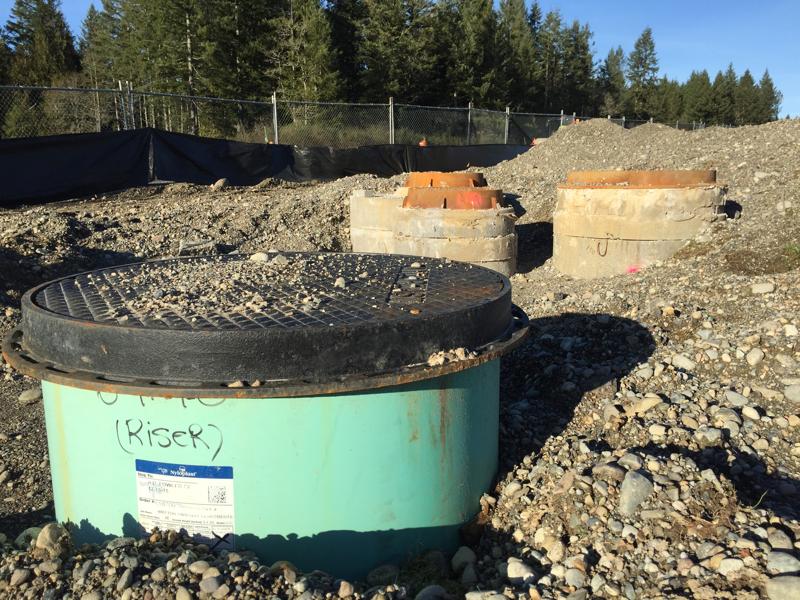

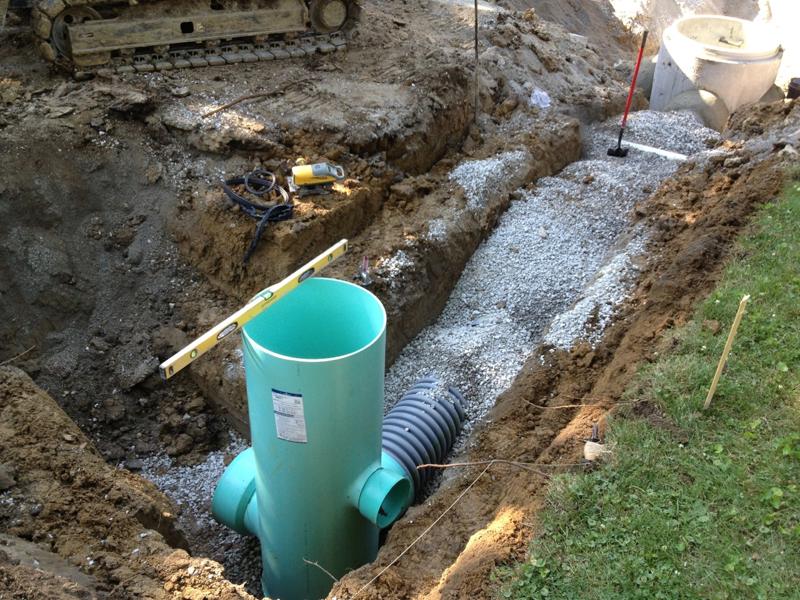

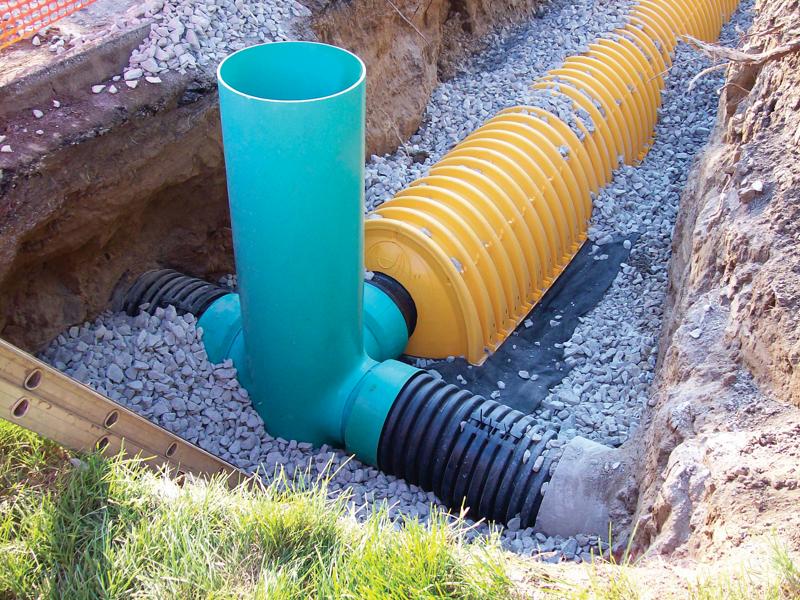

Features and Benefits
Our newest solution for managing stormwater intake is engineered for high performance and maximum flexibility. It uses a unique patented design to connect to multiple pipe diameters, grates and covers. Find it in stock near you with parts available for same-day construction.
- Local Availability: Easy to find for no project time lost.
- Universal Solution: Flexible design adapts to various pipes, grates and covers.
- Reliable Durability: Long-lasting, water-tight connection from resilient materials.
- Quick Installation: Light weight for fast and safe completion by hand.







Documentation
12" (300 mm) Universal Inline Drain - Non Traffic Rated Nyloplast Detail
12" (300 mm) Universal Inline Drain - Shallow Installation Nyloplast Detail
12" (300 mm) Universal Inline Drain - Traffic Rated Nyloplast Detail
12" Universal Inline Drain for N-12
12" Universal Inline Drain for SDR35 / SCH40 PVC
24" Universal Inline Drain Dimensional Nyloplast Detail
24" Universal Inline Drain Quick Spec Installation Nyloplast Detail
8" Nyloplast Universal Inline Drain Shallow Burial Guidelines
8" Universal Inline Drain for N-12 Dimensional Detail
8" Universal Inline Drain for PVC Dimensional Detail
8" Universal Inline Drain Non-Traffic Quick Spec Installation Detail
8" Universal Inline Drain Traffic Rated Quick Spec Installation Detail
