Aquabox

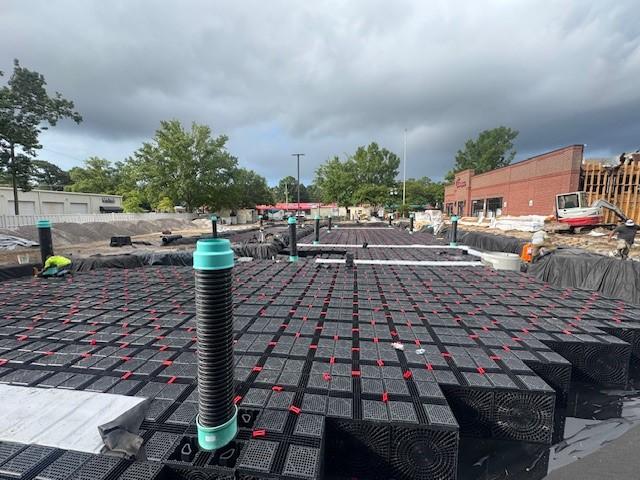

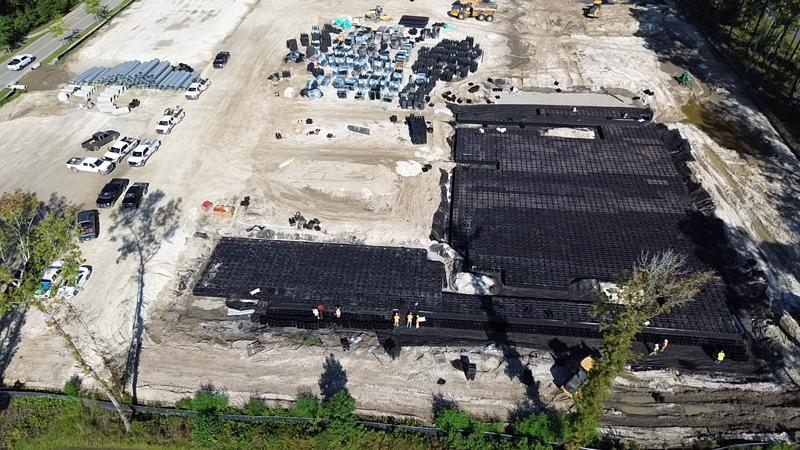

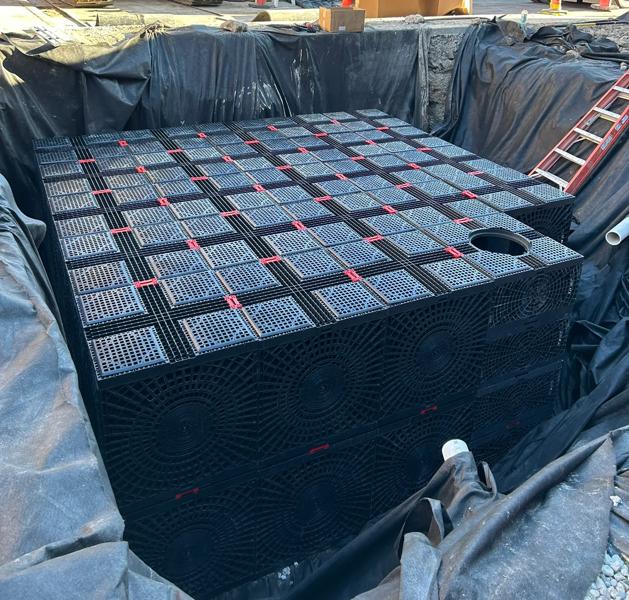

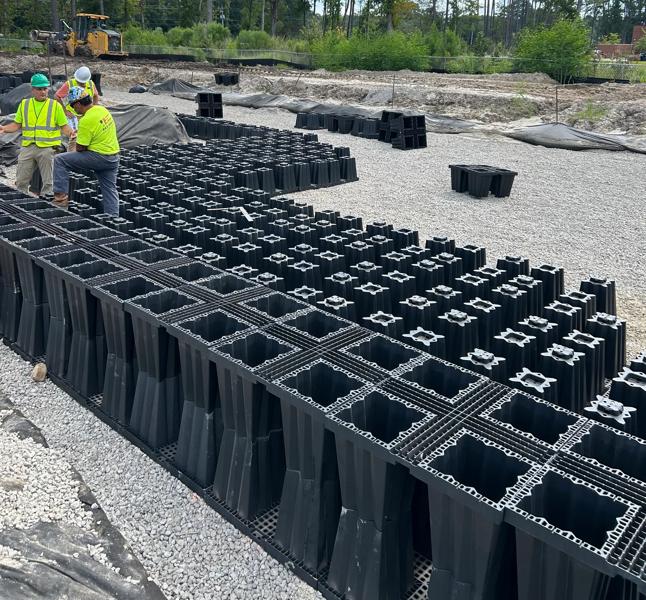

Aquabox is a modular underground system designed for sustainable stormwater management. The modules are delivered palletized to the project site and assembled in place.
The Aquabox system is designed primarily to be used under parking lots, thus maximizing land usage for private (commercial) and public applications. The Aquabox can also be used in conjunction with Green Infrastructure, thus enhancing the performance and extending the service life of these practices.
Features
- Fast and easy installation
- High load resistance
- Open and flexible system that can be used for both detention and retention (infiltration) applications
- 96% void
- 29.5” x 29.5 “x 31.5” (750 x 750 x 800 mm) modular modules that is easy to manage
- 15.24ft3 (0.43 m3 ) per Aquabox module
Benefits
- Internal configuration makes the system easily accessible for inspection, maintenance & cleaning.
- Modules are stackable, allowing 16,000 ft3 (453.1 m3 ) of installed volume to be transported in a single truckload
Specifications
- Aquabox is designed for the passage of heavy vehicles, load class HS20. The basin is equipped with access points for inspection and cleaning of the basin.
Did You Know?
Documentation
Aquabox Half Pipe Insertion Detail
Aquabox Inspection Port Detail
Aquabox Inspection Port Inlet Detail
DC-780 Chamber Isolator Row Details
Isolator Row Details Aquabox 0.5
Isolator Row Details Aquabox-1
Lined System Cross Section Aquabox 3
Lined System Cross Section Aquabox-1
Lined System Cross Section Aquabox-1.5
Lined System Cross Section Aquabox-2
Lined System Cross Section Aquabox-2.5
Maintenance Row Details Aquabox 1.5 - 2.5
Maintenance Row Details Aquabox 2-3
SC-310 Chamber Isolator Row Details
Standard Cross Section Aquabox 0.5
Standard Cross Section Aquabox 3
Standard Cross Section Aquabox-1
Standard Cross Section Aquabox-1.5
Standard Cross Section Aquabox-2
Standard Cross Section Aquabox-2.5
Technical Specification Aquabox Half Module
