SOLUTION

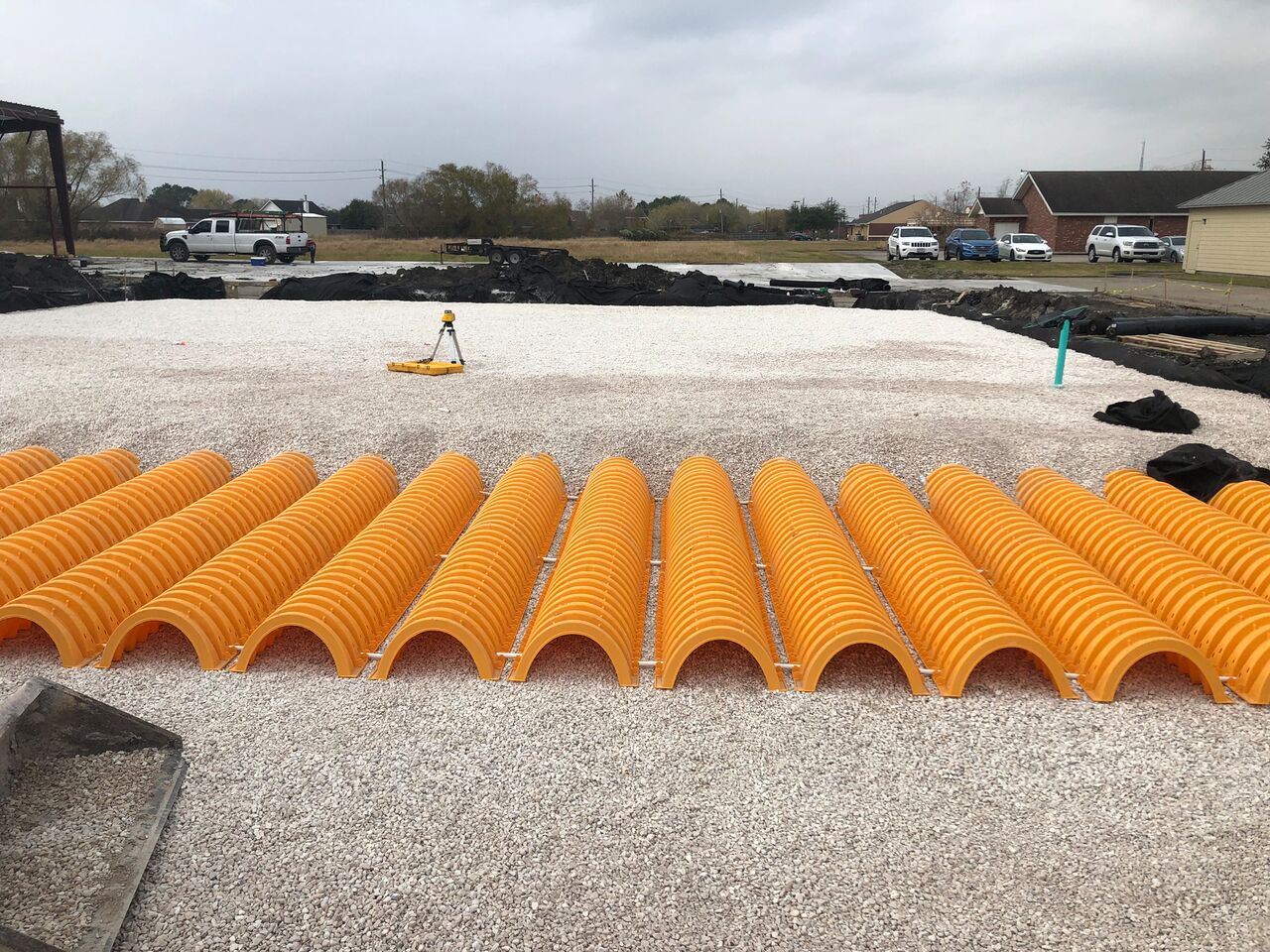

Carnes Engineering collaborated with Advanced Drainage Systems to develop a stormwater solution capable of providing the required detention despite the site’s high water table. The team determined that 442 StormTech SC‑310 chambers were the most practical choice. With a height of just 16” (400 mm), the SC‑310 chambers could be installed within the shallow available depth while still achieving the necessary storage volume of 15,230 ft³ (431 m³). To meet this capacity, the StormTech system was placed beneath the entire parking lot.
As part of the system design, 120’ (37 m) of 6” (150 mm) perforated N‑12 dual‑wall pipe was installed as the underdrain. In addition, 285’ (87 m) of 24” (600 mm) N‑12 pipe, manufactured from high‑density polyethylene, conveyed stormwater from the StormTech system to the municipal stormwater network.
At each inlet structure StormTech Isolator Row Plus were used to capture the stormwater’s “First Flush”. Isolator Row Plus enhances removal of suspended solids and pollutant removal, while allowing for easier inspection and maintenance.
PRODUCT DESCRIPTIONS
StormTech chambers are designed to save valuable land, reduce flooding risks and protect water resources. The chambers provide a durable structural system and are designed in accordance with AASHTO LRFD Bridge Design specifications for HS-20 Live loads. StormTech chambers are available in a variety of sizes to meet any project need and are injection molded for uniform wall thickness.
N-12 is a high-density polyethylene pipe for gravity-flow storm drainage applications. N-12, which is available in diameters from 4”‑60” (100‑1500 mm), offers exceptional hydraulics and strength. N‑12 provides superior corrosion and abrasion resistance in a lightweight, corrugated design. A polyethylene bell minimizes joint distortion and eliminates chipping and cracking that is common to concrete bells. Available in 20’ (6 m) lengths, N‑12 provides lower installation costs and faster installation than traditional materials. N‑12 can be utilized for storm drains, culverts, cross drains, ditch enclosures and retention/detention.
