PRODUCTS USED
- 1,520’ (7,010 m) of 15”-60” (375-1500 mm) HP Storm Dual Wall Pipe
- 1,440’ (7,620 m) of 12”-60” (300-1500 mm) HP Storm Dual Wall Pipe
- 260' (79 m) of 18" (450 mm) HP Storm Dual Wall Pipe
- 500' (152 m) of 24" (600 mm) HP Storm Dual Wall Pipe
- 20' (6 m) of 30" (750 mm) HP Storm Dual Wall Pipe
- 1,840 (561 m) of 36" (900 mm) HP Storm Dual Wall Pipe
- 600' (183 m) of 42" (1,050 mm) HP Storm Dual Wall Pipe
- 320' (98 m) of 48" (1,200 mm) HP Storm Dual Wall Pipe
- 240' (73 m) of 60" (1,500 mm) HP Storm Dual Wall Pipe
- 960' (293 m) of 12" (300 mm) N-12 Dual Wall HDPE Pipe
- 960' (293 m) of 15" (300 mm) N-12 Dual Wall HDPE Pipe
- 720' (219 m) of 18" (450 mm) N-12 Dual Wall HDPE Pipe
- 1,820' (555 m) of 24" (600 mm) N-12 Dual Wall HDPE Pipe
- 480' (146 m) of 30" (750 mm) N-12 Dual Wall HDPE Pipe
- 1,780' (543 m) of 36" (900 mm) N-12 Dual Wall HDPE Pipe
- 840' (256 m) of 42" (1,050 mm) N-12 Dual Wall HDPE Pipe
- 640' (195 m) of 48" 1,200 mm) N-12 Dual Wall HDPE Pipe
- 1,040' (317 m) of 60" (1,500 mm) N-12 Dual Wall HDPE Pipe
Access to these points is via the interchange of I-75 and County Road 99. The current bridge is handling 56% more traffic than it was designed to handle.
For safe and efficient movement of traffic, a diverging diamond interchange was designed utilizing the current bridge and by building a new bridge to the south of the current bridge. Stormwater from the project site and along County Road 99 was conveyed to nearby creeks by using nearly 16,000’ (4,877 m) of N-12 and HP Storm pipe. The stormwater conveyance ran approximately 1.5 miles along County Road 99.
The project had open specifications for the type of pipe used and required post-installation inspection with less than 7.5% deflection. Miller Bros. Construction has a long history of using N-12 and HP Storm pipe. For the I-75 rehabilitation, Miller Bros. Construction used HP storm on the deep burials and under roadways and a railroad. Both N-12 and HP Storm were buried along the County Road 99 corridor, which receives a very high volume of semi-truck traffic.

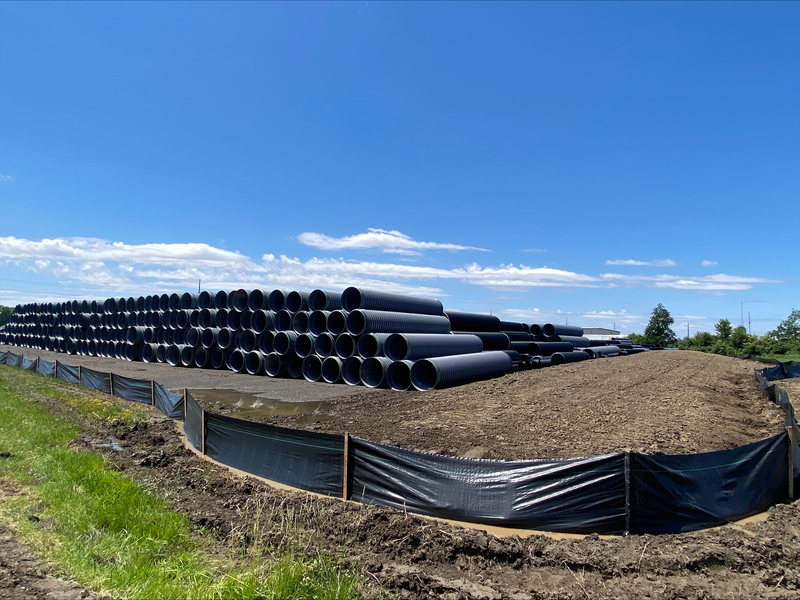

Miller Bros. Construction prefers N-12 and HP Storm due to the ease of installation and smaller pipe diameters can be nested inside of larger pipe, which allows for a smaller storage footprint.

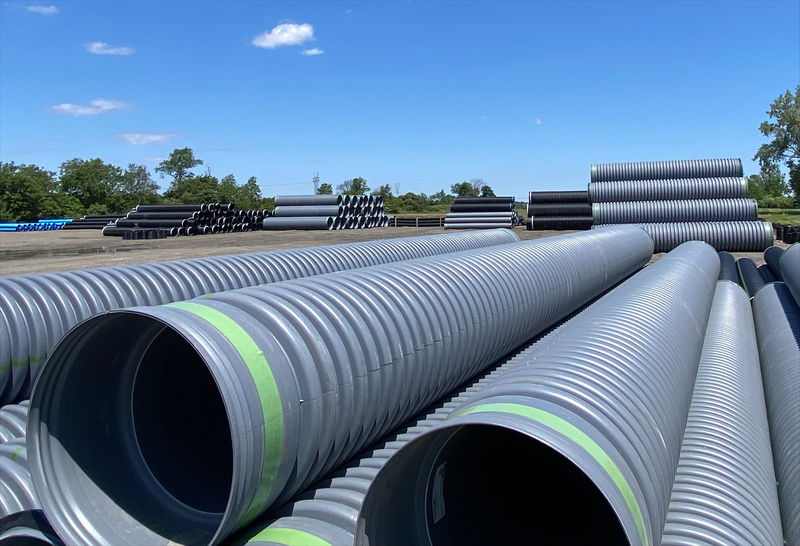

HP Storm polypropylene pipe provides superior pipe stiffness, longer bells and spigots and a premium joint performance for a longer service life. The smooth interior wall offers additional strength and high flow capacity. HP Storm pipe meets or exceeds the standards specified in ASTM F2881 and AASHTO M330 and the extended bell and spigot meets ASTM D3212. Polypropylene is an inert material and is resistant to the effects of chemicals, abrasion, hot soils and effluent. The lightweight product is easy to deliver and is readily available in convenient locations across North America to service local projects.
N-12 dual wall pipe has a corrugated exterior and smooth interior wall that provide exceptional strength and hydraulics. The inert HDPE material is resistant to the effects of chemicals, abrasions and hot soils. N-12 is available in 4”-60” (100-1500 mm) diameters and in 20’ (6 m) lengths. The inline bell design allows for pipe ends to be pushed together for easy installation.
