3" - 4" Tap Tees (HDPE Single Wall Fittings)

This document is the 3”- 4” Tap Tees (HDPE Single Wall Fittings). A detail with table provided.

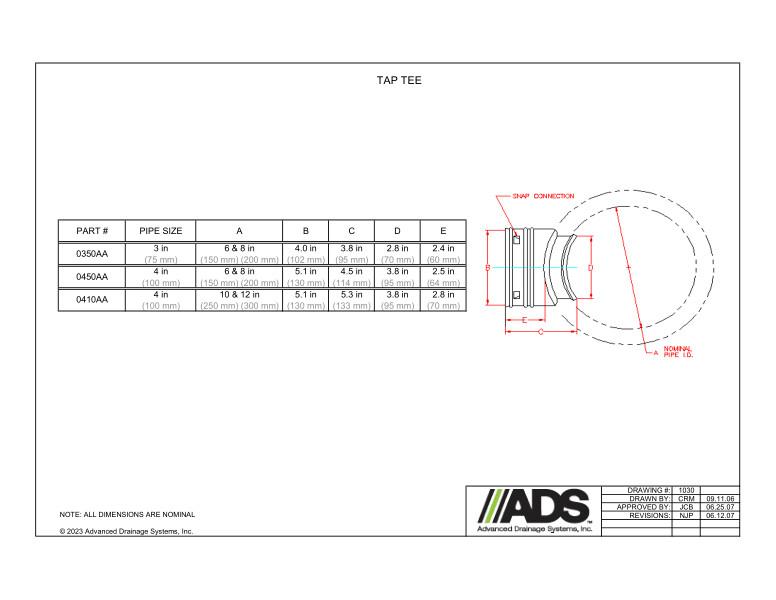

The Tap Tee detail shows the snap connection, nominal pipe I.D. and A/B/C/D/E dimensions.

A table with part number, pipe size and A/B/C/D/E dimensions is provided.

All dimensions are nominal.

3" - 4" Tap Tees (HDPE Single Wall Fittings)
