15" Standard Locking Grate Assembly Nyloplast Detail
Filename:
15" Standard Locking Grate Assembly Nyloplast Detail.pdf
![15" Standard Locking Grate Assembly Nyloplast Detail](https://assets.adspipe.com/m/58aac1594e538c61/webimage-15-Standard-Locking-Grate-Assembly-Nyloplast-Detail.jpg)
This document is the 15" Standard Locking Grate Assembly Nyloplast Detail. It shows illustrations with descriptions.

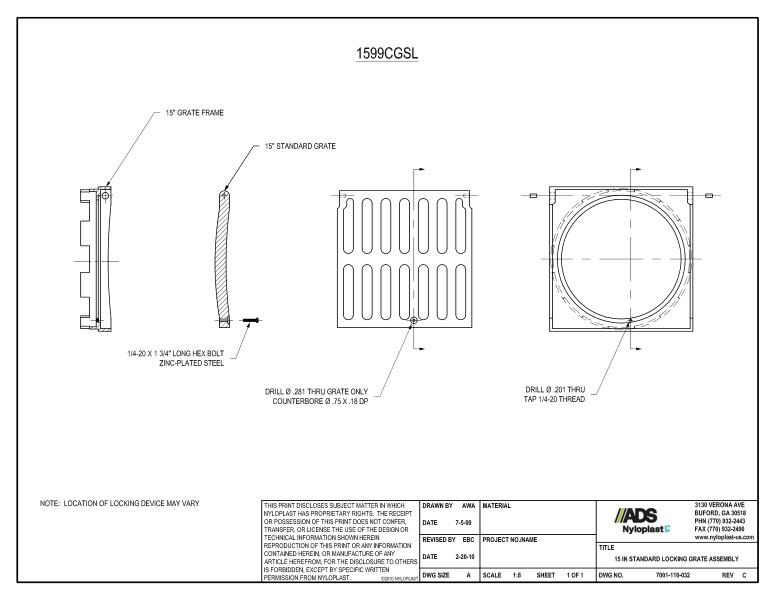

The side view illustrations show the 15” grate frame & 15” standard grate with ¼-20 x 1 ¾” long hex bolt zinc-plated steel. The top down view shows the grate with drill thru position and the frame drill thru thread position.
A note states that the location of locking device may vary.
