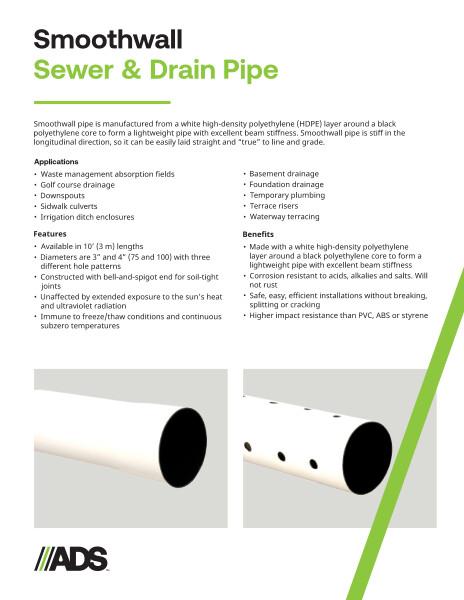

This document is the Smoothwall Product Sheet. Applications, features, benefits and specifications explained.

Smoothwall pipe is manufactured from a white high density polyethylene (HDPE) layer around a black polyethylene core to form a lightweight pipe with excellent beam stiffness. Smoothwall pipe is stiff in the longitudinal direction so it can be laid straight and true to line and grade.

Applications include waste management absorption fields, golf course drainage, downspouts, sidewalk culverts, irrigation ditch enclosures, basement/foundation drainage, temporary plumbing, terrace risers and waterway terracing.

Features clarify pipe is available in 10’ (3 m) lengths, diameters are 3” and 4” with 3 different hole patterns, constructed with bell-and-spigot end for soil tight joints, unaffected by sun heat or radiation exposure, immune to freeze/thaw conditions.

Benefits explain that the pipe is made with a white high density polyethylene (HDPE) layer around a black polyethylene core to form a lightweight pipe with excellent beam stiffness, corrosion resistant to acids, alkalies and salts. Will not rust. Safe, easy installations without breaking, cracking or splitting. Higher impact resistance than PVC, ABS or styrene.

Specifications list scope, pipe requirements, joint performance, material properties, installation with a pipe dimension chart. 3 Perforation option diagrams, a white skin/black core and bell end/spigot figures provided.
