15 x 12 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail
Filename:
15 x 12 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail.pdf
![15 x 12 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail](https://assets.adspipe.com/m/7865fc00b69173cf/webimage-15-x-12-N-12-Dual-Wall-Tee-with-Gasketed-SWR-Bell-Nyloplast-Detail.jpg)

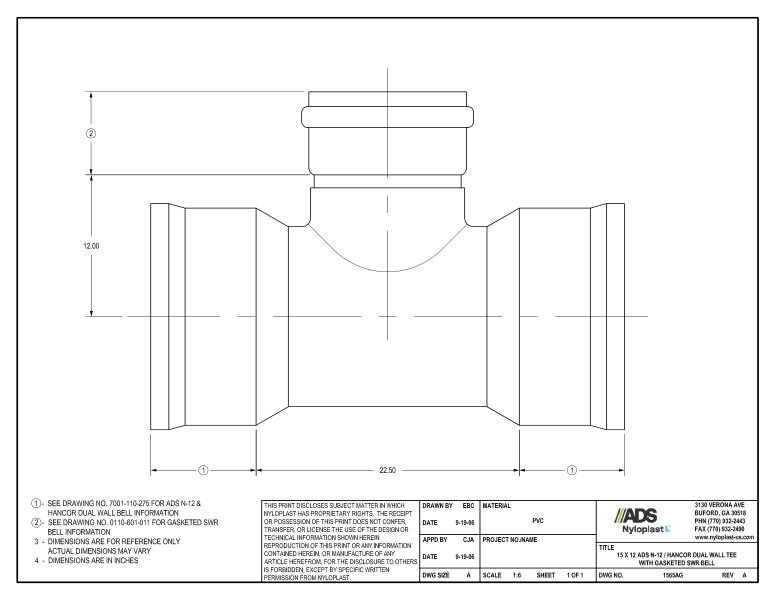

This document is the 15 x 12 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 refers to a drawing for gasketed SWR Bell information. A note on dimension 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
