This document is the StormTech Storm Chamber Soil Tight End Cap - Top (StormTech Dual Wall HDPE Fittings). Diagrams and table included.

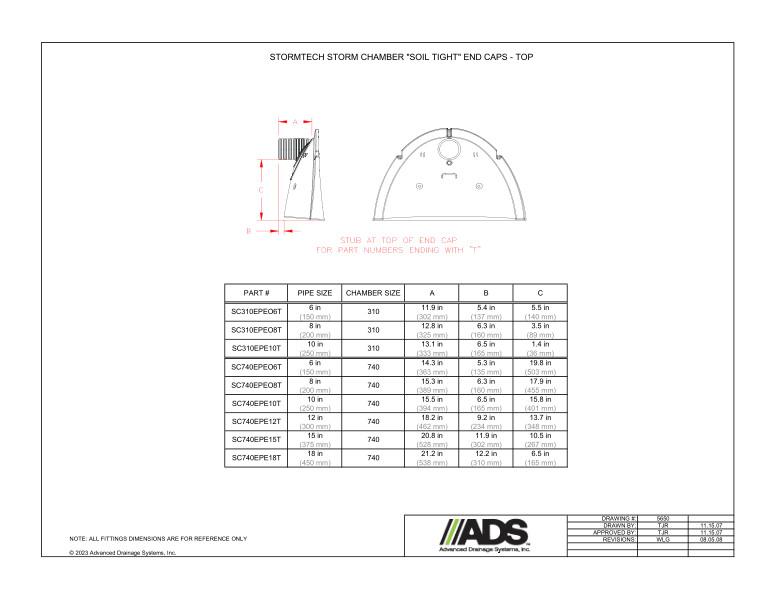

StormTech Storm Chamber “Soil Tight” End Caps - Top shows the diagrams for the end caps with A/B/C dimensions and stub at top of end cap for part numbers ending in “T”.

The table lists the part number, pipe size, chamber size and A/B/C dimension values.

All fittings dimensions are for reference only.
