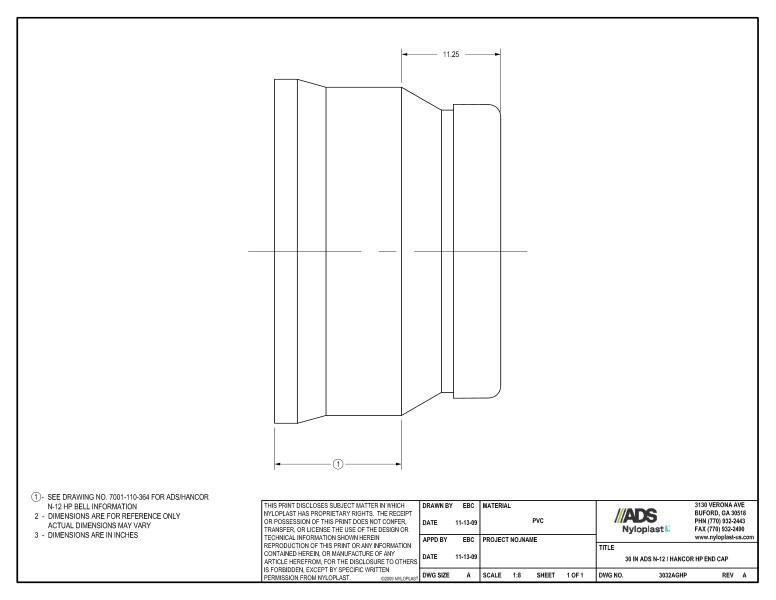

This document is the 30” HP End Cap Nyloplast Detail. End cap illustration shown with dimensions and notes.

The illustration shows the 11.25 dimension.

Note 1 refers to a drawing for ADS/Hancor N-12 HP Bell information. Note 2 states that dimensions are for reference only. Note 3 states that dimensions are in inches.
