804 Concrete Anchors Steeply Sloped Pipe Installation Detail

Filename:
804 Concrete Anchors Steeply Sloped Pipe Installation Detail.pdf

804 Concrete Anchors Steeply Sloped Pipe Installation Detail

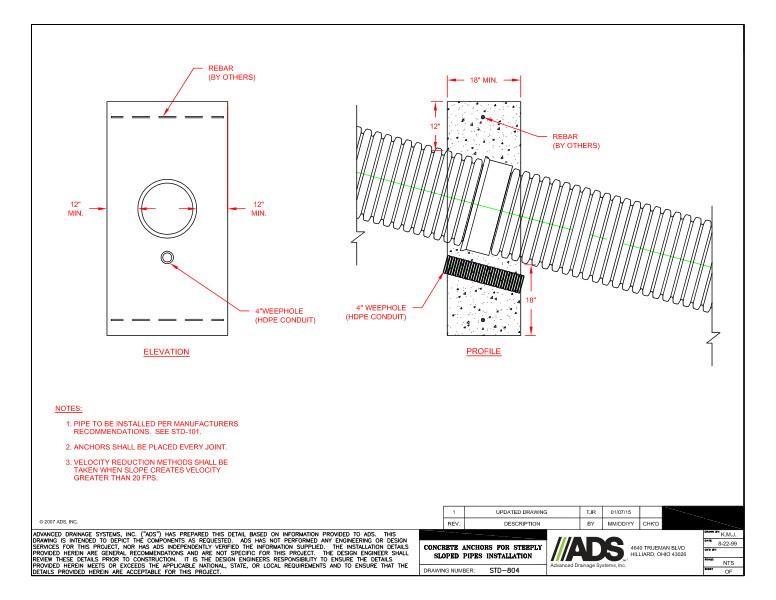

This document is the 804 Concrete Anchors Steeply Sloped Pipe Installation Detail. Diagrams with descriptors and notes explain the system.

The elevation diagram shows the rebar, 4” weephole (HDPE conduit) and 12” minimums.

The profile diagram shows the rebar, 4” weephole (HDPE conduit) and various minimums.

Notes recommend that pipe to be installed per manufacturer. Anchors shall be placed in every joint. Velocity reduction methods shall be taken when slope creates velocity greater than 20 FPS.
