StormTech Vent Option

Filename:
StormTech Vent Option.dwg

StormTech Vent Option

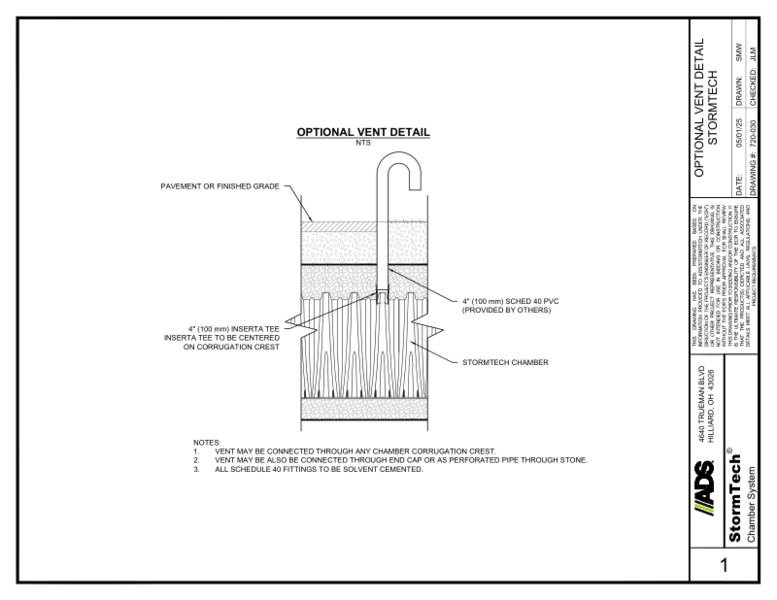

This document is the StormTech Vent Option Detail. A cross section of the optional vent detail is shown.

The cross section of the StormTech Vent Option Detail shows pavement or finished grade, 4” (100 mm) schedule 40 PVC, 4” inserta TEE which is to be centered on the corrugation crest. The StormTech chamber is positioned underneath.

Notes offer suggestions like vent may be connected through any chamber corrugation crest, vent may be connected through end cap or as perforated pipe through stone and all schedule 40 fittings to be solvent cemented.
