2' x 3' Steel Bar Grate Assembly Nyloplast Detail

Filename:
2' x 3' Steel Bar Grate Assembly Nyloplast Detail.dwg

2' x 3' Steel Bar Grate Assembly Nyloplast Detail

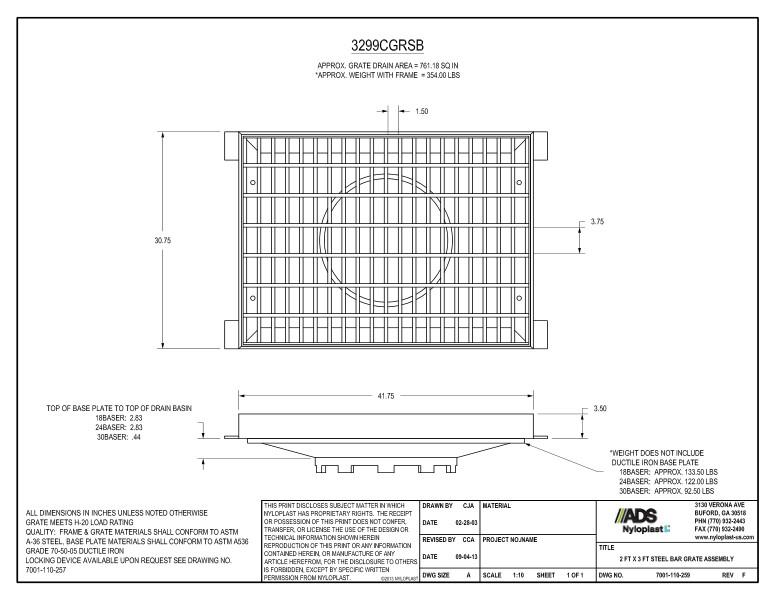

This document is the 2’ x 3’ Steel Bar Grate Assembly Nyloplast Detail. 2 nyloplast illustrations with dimensions shown.

1 detail shows the grate from top with approximate grate drain area and weight with frame. Side view details top of base plate to top of drain basin dimensions and weights that do not include ductile iron base plate.

Notes state that dimensions are in inches, frame and grate material shall conform to ASTM A-36 steel, base plate materials are ductile iron and locking device available.
