8" Adapter - N-12 Dual Wall Bell x SWR Spigot Nyloplast Detail
Filename:
8" Adapter - N-12 Dual Wall Bell x SWR Spigot Nyloplast Detail.dwg
![8" Adapter - N-12 Dual Wall Bell x SWR Spigot Nyloplast Detail](https://assets.adspipe.com/m/4834ec1cd3ab4497/webimage-8-Adapter-N-12-Dual-Wall-Bell-x-SWR-Spigot-Nyloplast-Detail.jpg)

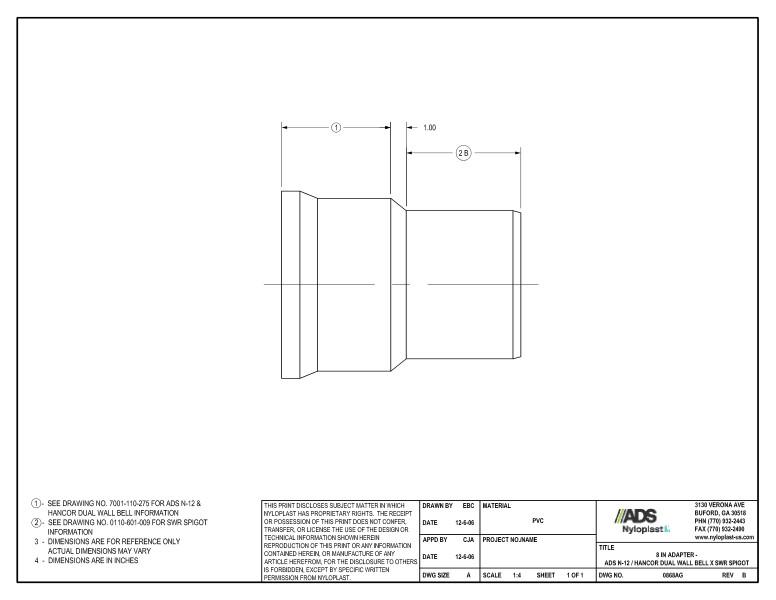

This document is the 8” Adapter - N-12 Dual Wall Bell x SWR Spigot Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. A note on dimension 2 references drawing for SWR spigot information. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
