AquaLux™
The AquaLux Filtration System is a high-performance stormwater treatment solution engineered to deliver exceptional treatment flow rates in a compact underground footprint with zero drop across the system. Utilizing sedimentation and membrane filtration, AquaLux captures suspended solids from stormwater runoff while helping engineers maximize treatment capacity and minimize site impacts. AquaLux is available in multiple configurations, including manholes and vaults, to accommodate a wide range of development and infrastructure applications.
Product Features & Benefits
Product Features
Product Details
Product Details
Documentation
Documentation
Overview
Designed for demanding site conditions, AquaLux provides independently verified stormwater treatment performance while offering flexibility for projects with limited space, challenging hydraulic constraints or aggressive flow requirements. AquaLux delivers industry-leading treatment flow rates in its class and has been independently verified to achieve 80% Total Suspended Solids (TSS) removal.
Features and Benefits
- Scalable solutions for a wide range of project sizes
- Delivered with decking preinstalled within structure
- High-flow underground stormwater filtration system
- Gravitational settling and membrane filtration treatment
- Proprietary membrane filter elements
- Internal pretreatment chamber
- Available in HP manholes, concrete manholes, and vaults
- Integrated bypass capability
- Multiple standard sizes and configurations
- No moving parts
AquaLux Regulatory Status Under NJDEP/NJCAT
AquaLux has achieved independent verification for 80% Total Suspended Solids (TSS) removal under NJDEP/NJCAT filter testing protocols and has received regulatory approvals for stormwater treatment applications.
How AquaLux Works

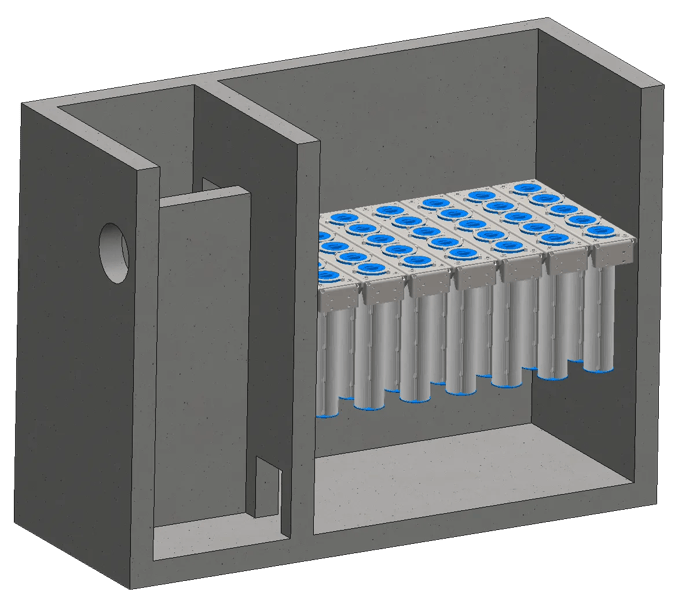

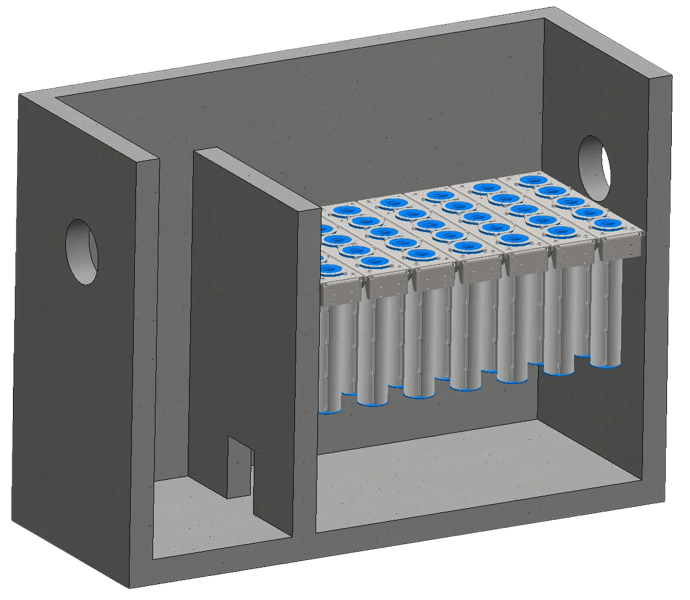

Stormwater runoff enters the AquaLux system and flows into a pretreatment chamber where larger sediment particles settle before reaching the filtration chamber. Water then passes through an array of membrane filter elements designed to remove suspended solids. Treated stormwater exits the system and continues downstream. During larger storm events, bypass flow paths protect treatment performance while maintaining hydraulic capacity.
Common Applications
- Commercial developments
- Municipal infrastructure projects
- Transportation corridors
- Urban redevelopment projects
- Parking lots
- Industrial facilities
- Sites with limited footprint availability
Why Should you use AquaLux?
- AquaLux has a Very High Treatment Capacity
AquaLux is designed to maximize treatment flow within a compact footprint, helping designers treat larger drainage areas while reducing the space required for stormwater infrastructure. - Compact Footprint
Compared to conventional high-flow filtration systems, AquaLux helps reduce structure size, excavation requirements, and overall site impacts. - Proven Stormwater Treatment Performance
AquaLux has been independently verified to achieve 80% TSS removal in accordance with NJDEP/NJCAT filter testing protocols. - Flexible Configurations
Available in HP manholes, concrete manholes, and vault systems, AquaLux can be adapted to a variety of site layouts and project requirements. - Low Hydraulic Impact
AquaLux is designed with minimal hydraulic grade line impact and low driving head requirements, allowing greater flexibility during project design.
Scalable Impact for Contractors & Engineers
AquaLux™ is a high-flow stormwater filtration system that utilizes gravitational settling and membrane filtration to remove suspended solids from stormwater runoff. The system is designed to provide high treatment capacity within a compact underground footprint and is available in both manhole and vault configurations.
Stormwater enters a pretreatment chamber where larger sediment particles settle out of the flow. Water then passes through an array of membrane filter elements that remove suspended solids before the treated water exits the system. During larger storm events, bypass flow paths maintain hydraulic capacity while protecting treatment performance.
AquaLux is designed to remove suspended solids from stormwater runoff through sedimentation and membrane filtration. AquaLux has been independently verified to achieve 80% Total Suspended Solids (TSS) removal under NJDEP/NJCAT filter testing protocols.
AquaLux has been independently verified to achieve 80% Total Suspended Solids (TSS) removal according to NJDEP/NJCAT filter testing protocols.
AquaLux is engineered to maximize treatment flow rates while minimizing footprint. This allows engineers to treat larger drainage areas and meet water quality requirements without requiring larger structures or additional site space.
AquaLux is designed to provide high treatment capacity in a compact footprint. Compared to conventional high-flow filtration systems, AquaLux can help reduce structure size, excavation requirements, and impacts to site layout.
Yes. AquaLux is available in multiple configurations, including HP manholes, concrete manholes, and vault systems, allowing designers to select the best solution for the project and site conditions.
No. AquaLux is designed with minimal hydraulic impact and low driving head requirements, making it a strong option for projects with limited hydraulic grade line availability.
Yes. Its compact footprint and low hydraulic requirements make AquaLux well suited for redevelopment, retrofit, and constrained urban applications where available space is limited. This suitability is based on the documented compact footprint and low hydraulic impact characteristics of the system.
AquaLux can be used in a variety of applications, including:
- Commercial developments
- Industrial facilities
- Distribution centers
- Transportation projects
- Municipal infrastructure
- Mixed-use developments
- Redevelopment projects
- Parking facilities
No. AquaLux is designed with no moving parts, helping simplify operation and maintenance.
Yes. AquaLux is available in multiple standard sizes and configurations, allowing designers to match system capacity with project-specific treatment flow requirements.
ADS can provide project-specific sizing assistance based on treatment flow requirements, drainage area, and site constraints.
Contact your local ADS representative or request design support to determine the appropriate AquaLux configuration for your project.
