Arcadia® Hydrodynamic Separator

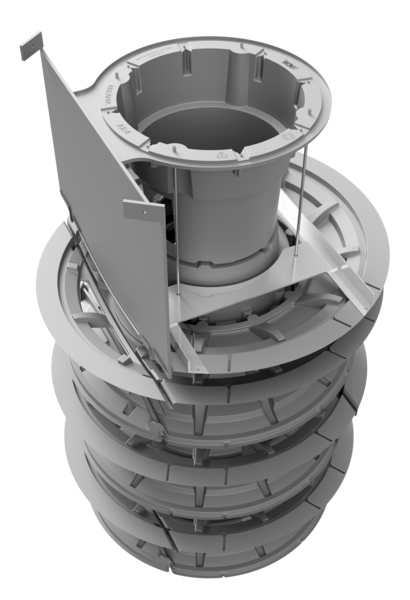

The Arcadia is market-changing stormwater quality technology. This high-performance hydrodynamic separator is designed to remove total suspended solids in order to protect the world’s most precious resource. The Arcadia is also an outstanding value that offers multiple pipe configurations, and quick installation.
Product Variations & Specifications
Product Specs
Product Details
Product Details
Documentation
Documentation
| Model | Description | Manhole Diameter | NJDEP (50% removal) | OK110 (80% TSS Maximum) |
|---|---|---|---|---|
| AR3HP | HP manhole with concrete top slab | 36" (900 mm) | 0.95 cfs | 1.55 cfs |
| AR3HPDT | HP manhole with ductile iron flat top | 36" (900 mm) | 0.95 cfs | 1.55 cfs |
| AR3PC | Concrete manhole | 36" (900 mm) | 0.95 cfs | 1.55 cfs |
| AR4HP | HP manhole with concrete top slab | 48" (1200 mm) | 1.68 cfs | 2.75 cfs |
| AR4HPDT | HP manhole with ductile iron flat top | 48" (1200 mm) | 1.68 cfs | 2.75 cfs |
| AR4PC | Concrete manhole | 48" (1200 mm) | 1.68 cfs | 2.75 cfs |
| AR5HP | HP manhole with concrete top slab | 60" (1500 mm) | 2.63 cfs | 4.30 cfs |
| AR5PC | Concrete manhole | 60" (1500 mm) | 2.63 cfs | 4.30 cfs |
| AR6PC | Concrete manhole | 72" (1829 mm) | 3.78 cfs | 6.19 cfs |
| AR8PC | Concrete manhole | 96" (2400 mm) | 6.72 cfs | 11.00 |
| AR10PC | Concrete manhole | 120" (3000 mm) | 10.50 cfs | 17.19 |
Features
- Single manhole design
- No elevation loss between the inlet and outlet

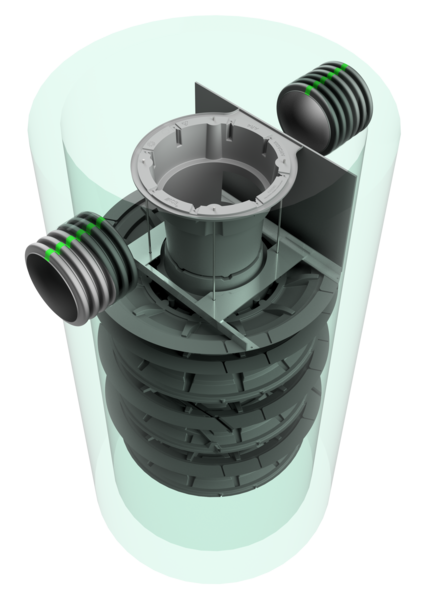

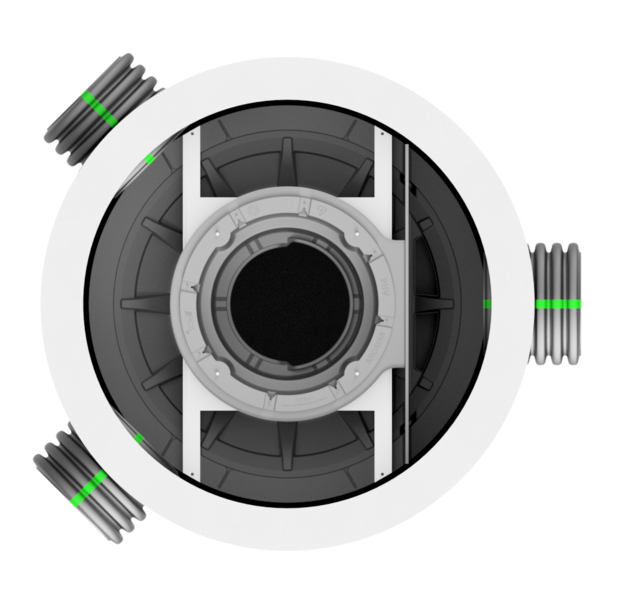

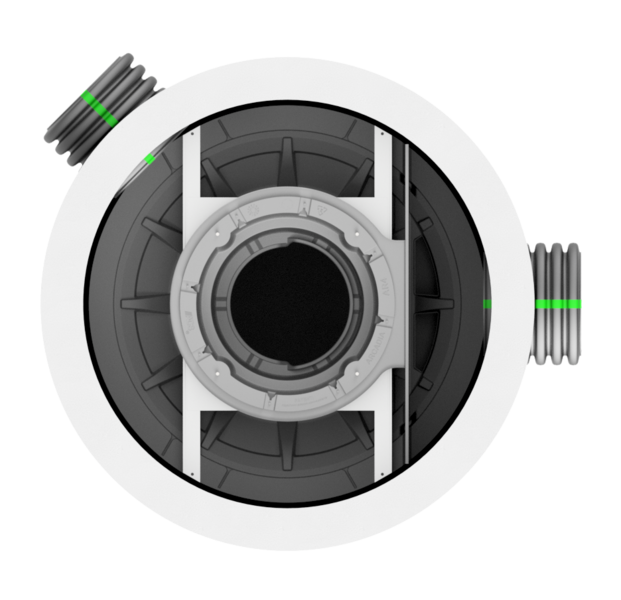

- Variable inlet/outlet angle configurations (not just 180-degree orientation)
- Internal bypass for inline installation (where applicable)
- Innovative, patent-pending design mitigates turbulence in the sump area to prevent resuspension of captured contaminants
Benefits
- The AR3, AR4, AR5, AR6, AR8 and AR10 can be installed in a standard 36” (900 mm), 48” (1200 mm), 60” (1500 mm), 72” (1800 mm) 96” (2400 mm), and 120” (3000 mm) precast manhole, respectively
- The AR3, AR4 & AR5 can be provided factory assembled within a 36” (900 mm), 48” (1200 mm), and 60” (1500 mm) ADS HP manhole and delivered to the jobsite
- The interlocking internals are designed and manufactured for quick and easy installation
- Designed for easy maintenance using a vacuum truck or similar equipment
- Inspection and maintenance are performed from the surface with no confined space entry
The Acadia 3D Design Tool is Here to Help
Discover the Arcadia unit that fits your application perfectly in just a few clicks.
Documentation
Arcadia 10 Concrete Manhole Detail
Arcadia 10 Single Bypass Detail
Arcadia 3 Concrete Manhole Detail
Arcadia 3 HP Manhole DI Flat Top Detail
Arcadia 3 Single Bypass Detail
Arcadia 4 Concrete Manhole Detail
Arcadia 4 HP Manhole DI Flat Top Detail
Arcadia 4 HP MH DI Flat Top Single Bypass Details
Arcadia 4 HP MH Single Bypass Detail
Arcadia 4 Single Bypass Detail
Arcadia 5 Concrete Manhole Detail
Arcadia 5 HP MH Single Bypass Detail
Arcadia 5 Single Bypass Detail
Arcadia 6 Concrete Manhole Detail
Arcadia 6 Single Bypass Details
Arcadia 8 Concrete Manhole Detail
Arcadia 8 Single Bypass Detail
Arcadia Configuration Generale Regard en Béton
Arcadia Configuration Regard HP
See Our Case Studies
See Our Case Studies
Watch how the scale and power of ADS continues to evolve and revolutionize stormwater management.
Case Studies
