This document is the 8”-24” Split End Caps (HDPE Dual Wall End Caps & Plugs Fittings). Illustrations with reference tables are shown.

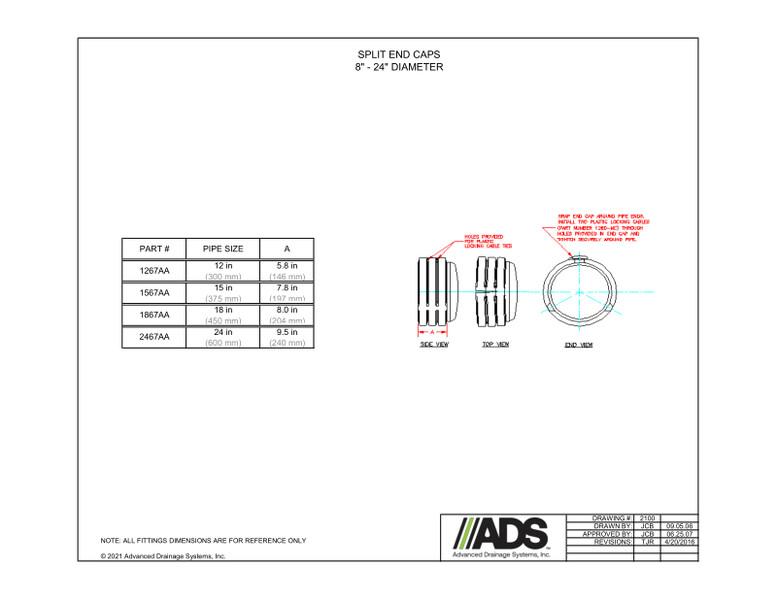

The 8”-24” Split End Caps side view illustration is shown with holes provided for plastic locking cable ties. A top view is shown. The end view instructs to wrap end cap around PPE ends, install 2 plastic locking cables in end cap and tighten securely around pipe.

A table with part number, pipe size and A dimensions is provided.

All fittings dimensions are for reference only.
