12" Bronze Grate Assembly Nyloplast Detail

Filename:
12" Bronze Grate Assembly Nyloplast Detail.dwg

12" Bronze Grate Assembly Nyloplast Detail

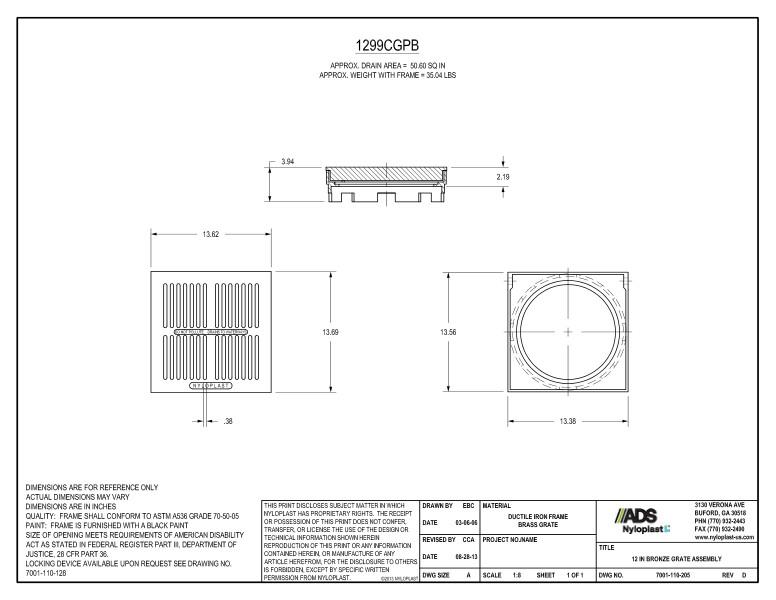

This document is the 12" Bronze Grate Assembly Nyloplast Detail. It shows the nyloplast grate and frame with dimensions.

The illustration shows the nyloplast grate and frame with dimensions for approximate drain area of 50.60 SQ inches and approximate weight of 35.04 LBS. A top and side view is shown.

Notes detail that dimensions are for reference only and in inches. Frame shall conform to ASTM A536 grade 70-50-05. Frame is furnished with a black paint. The size of opening meets the American Disability Act. The locking device is available upon request.
