45º Sweeping Bends 12"-60" HP Storm - Plain End (HP Storm Bends Fittings Manual)

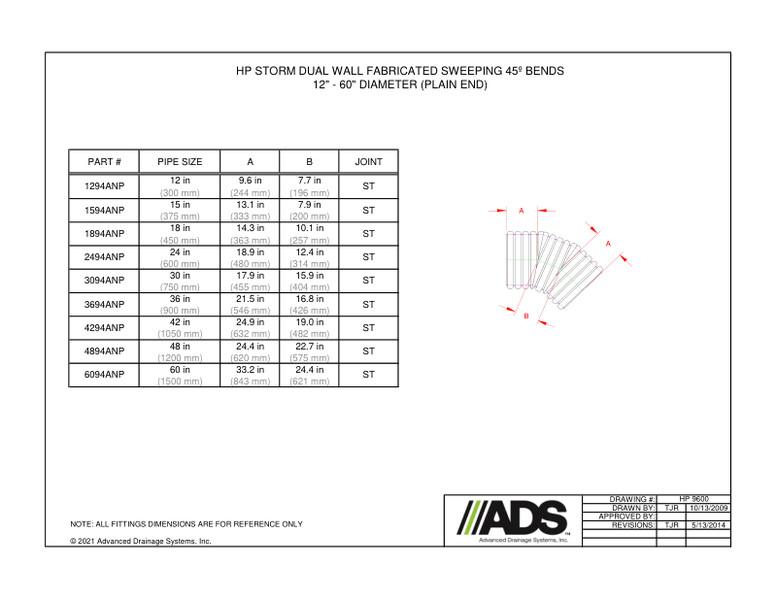

This document is the 45º Sweeping Bends 12"-60" HP Storm – Plain End (HP Storm Bends Fittings Manual). Diagram with table provided.

A table with part number, pipe size and A/B/Joint dimensions is provided.

The diagram of the HP Storm Dual Wall Fabricated 45º bends 12"-60" diameter (Plain End) is shown.

All fittings dimensions are for reference only.

45º Sweeping Bends 12"-60" HP Storm - Plain End (HP Storm Bends Fittings Manual)
