12" - 60" Dual Wall to RCP Manhole Adapter Fitting Water Tight Connection (HDPE Dual Wall Miscellaneous Fittings)

Filename:
12" - 60" Dual Wall to RCP Manhole Adapter Fitting Water Tight Connection (HDPE Dual Wall Miscellaneous Fittings).pdf

12" - 60" Dual Wall to RCP Manhole Adapter Fitting Water Tight Connection (HDPE Dual Wall Miscellaneous Fittings)

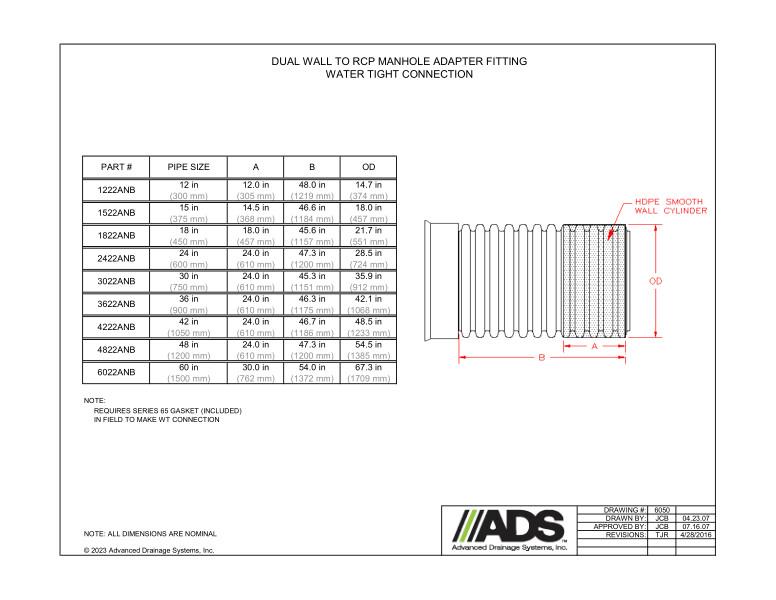

This document is the 12” - 60” Dual Wall to RCP Manhole Adapter Fitting Water Tight Connection (HDPE Dual Wall Miscellaneous Fittings). A diagram with table provided.

The Dual Wall to RCP Manhole Adapter Fitting Water Tight Connection diagram is shown with HDPE smooth wall cylinder, Series 65 WT gasket. and A/B/OD dimensions. It requires Series 65 gasket (included) in field to make WT connection.

A table with the information for part number, pipe size and A/B/OD sizes is provided.

All dimensions are nominal.
