Sanded Manhole Adapter - N-12 Wall Bell x SWR Spigot Nyloplast Detail
Filename:
Sanded Manhole Adapter - N-12 Wall Bell x SWR Spigot Nyloplast Detail.pdf
![Sanded Manhole Adapter - N-12 Wall Bell x SWR Spigot Nyloplast Detail](https://assets.adspipe.com/m/26188c259e3a39f4/webimage-Sanded-Manhole-Adapter-N-12-Wall-Bell-x-SWR-Spigot-Nyloplast-Detail.jpg)

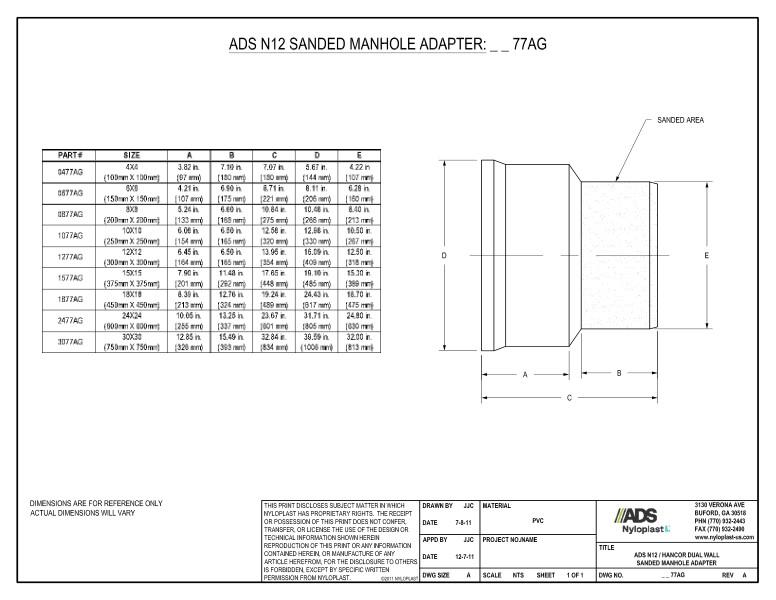

This document is the Sanded Manhole Adapter - N-12 Dual Wall Bell x SWR Spigot Nyloplast Detail. Part numbers, dimensions and nyloplast illustration with sanded area shown.
A chart details the part numbers 0477AG, 0677AG, 0877AG, 1077AG, 1277AG, 1577AG, 1877AG, 2477AG and 3077AG with corresponding size and A/B/C/D/E dimensions.
An illustration showing the dimensions with sanded area is provided.
A note states that dimensions are for reference only.
