6" x 4" - 10" x 8" Fabricated Reducing Wyes (HDPE Dual Wall Fabricated Wyes Fittings)

This document is the 6" x 4" - 10" x 8" Fabricated Reducing Wyes (HDPE Dual Wall Fabricated Wyes Fittings). A diagram with table provided.

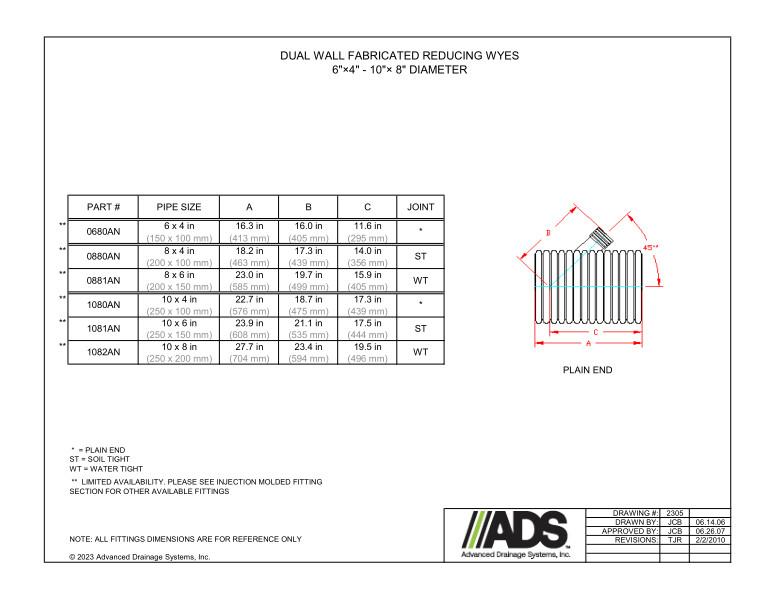

The diagram of the Dual Wall Fabricated Reducing Wyes 6" x 4" - 10" x 8" diameter shows the Plain End Wye with A/B/C dimensions and 45 degree arc.

A table with part number, pipe size and A/B/C/Joint dimensions is provided.

All fittings dimensions are for reference only.

6" x 4" - 10" x 8" Fabricated Reducing Wyes (HDPE Dual Wall Fabricated Wyes Fittings)
