Inserta Tee Wall Thickness Chart
Inserta Tee Wall Thickness Chart.dwg
This document explains the Inserta Tee Wall Thickness Chart. A description of the Inserta Tee OneFit and chart with size details provided.
The Inserta Tee OneFit and Multifit products should be utilized for most storm applications. Custom Inserta Tee Products are available for sanitary applications and some storm applications. Custom fittings are made to fit the wall thickness and radius of the mainline pipe. Wall thickness information of non-ADS pipe products can be found from the pipe manufacturer. Reference the Inserta Tee protrusion chart for protrusion information. Inserta Tee should be installed with Inserta Tee hole saw.

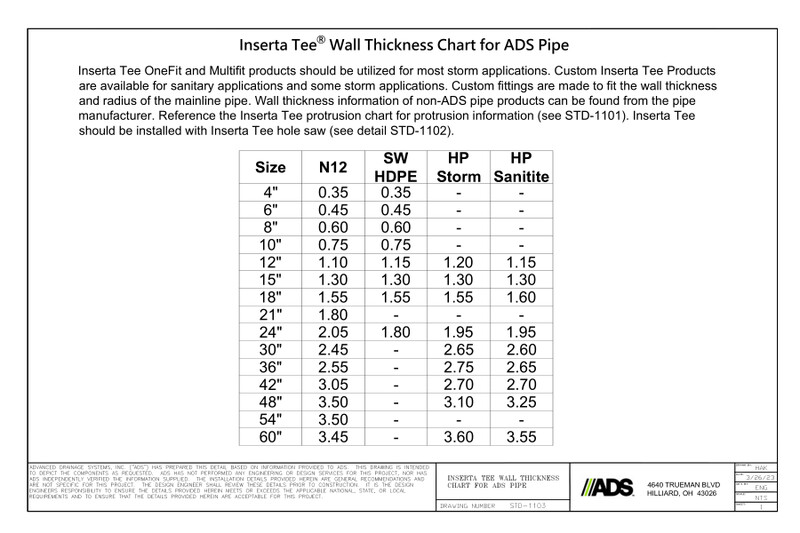

The Inserta Tee Wall Thickness Chart shows sizes 4” thru 60” with corresponding dimensions for N12, SW HDPE, HP Storm and HP Sanitite.
