12" - 30" Fabricated Soil Tight Plain End Double Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings)
Filename:
12" - 30" Fabricated Soil Tight Plain End Double Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings).pdf
![12" - 30" Fabricated Soil Tight Plain End Double Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings)](https://assets.adspipe.com/m/6271c10f6beaf5a6/webimage-12-30-Fabricated-Soil-Tight-Plain-End-Double-Manifolds-HDPE-Dual-Wall-Fabricated-Manifolds-Fittings.jpg)

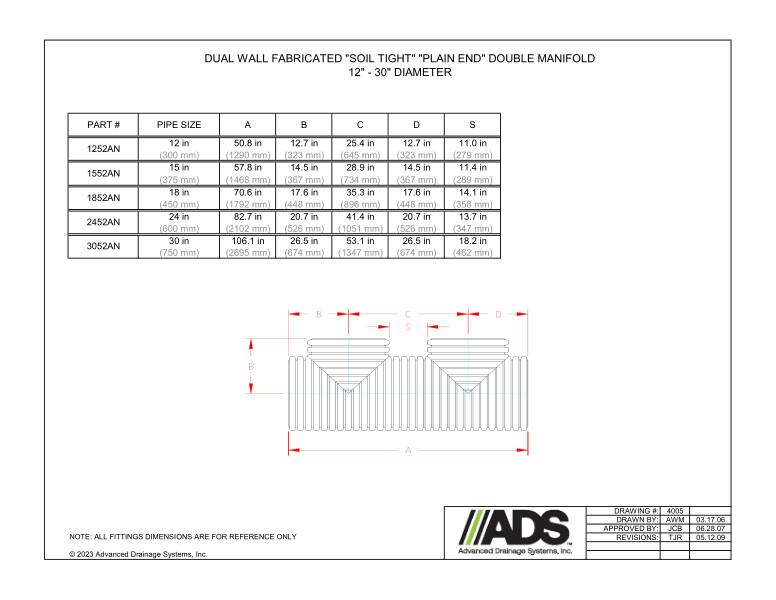

This document is the 12" - 30" Fabricated Soil Tight Plain End Double Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings). A diagram with table provided.
The dual wall Fabricated “Soil Tight” “Plain End” Double Manifold 12" - 30" diameter is shown in a diagram that shows A/B/C/D/S dimensions.
A table with the information for part number, pipe size and A/B/C/D/S sizes is provided.
All fittings dimensions are for reference only.
