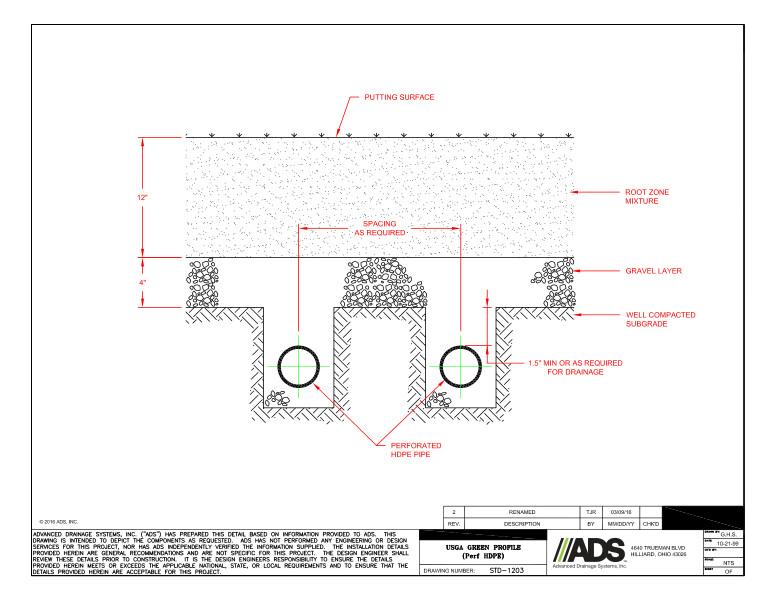

This document is the drawing for the 1203 USGA Green Profile (Perf HDPE) Detail, showing the construction of the putting green.

The Green Profile is a drawing showing the construction of the putting surface, where the root zone mixture goes, the gravel layer, the well-compacted subgrade, the minimum required spacing for drainage and the perforated HDPE pipe below that. This drawing is provided for reference.
