This document explains the Inserta Tee OneFit Roof Drain Applications. A detail of the Inserta Tee Roof Drain with QR code installation directions provided.

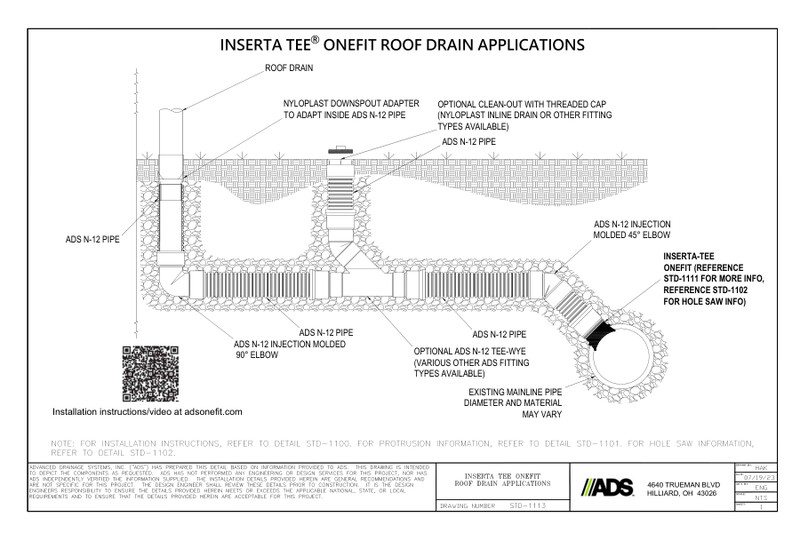

The Inserta Tee OneFit Roof Drain Applications detail shows the roof drain, Nyloplast downspout adapter to adapt inside ADS N-12 pipe, optional clean-out with threaded cap, ADS N-12 pipe, ADS N-12 injection molded 45 degree elbow, ADS N-12 injection molded 90 degree elbow, optional ADS N-12 Tee-Wye, Inserta Tee OneFit and existing mainline pipe where diameter and material may vary.

QR code is provided for installation directions and video.
