This document is the 12" - 24" Diameter StormTech Dual Wall Fabricated Soil Tight Single Manifold (StormTech Dual Wall HDPE Fittings). A diagram with table provided.

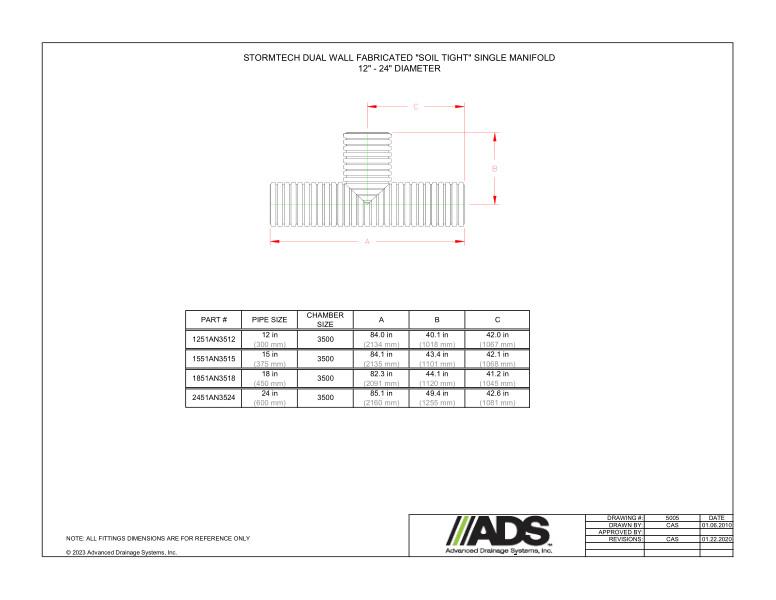

The StormTech dual wall Fabricated “Soil Tight” Single Manifold 12" - 24" diameter is shown in a diagram that shows A/B/C dimensions.

A table with the information for part number, pipe size and A/B/C sizes is provided.

All fittings dimensions are for reference only.
