904A Arc 36 HC Side Port Coupler Detail

Filename:
904A Arc 36 HC Side Port Coupler Detail.pdf

Download Document (pdf) View in Browser
904A Arc 36 HC Side Port Coupler Detail

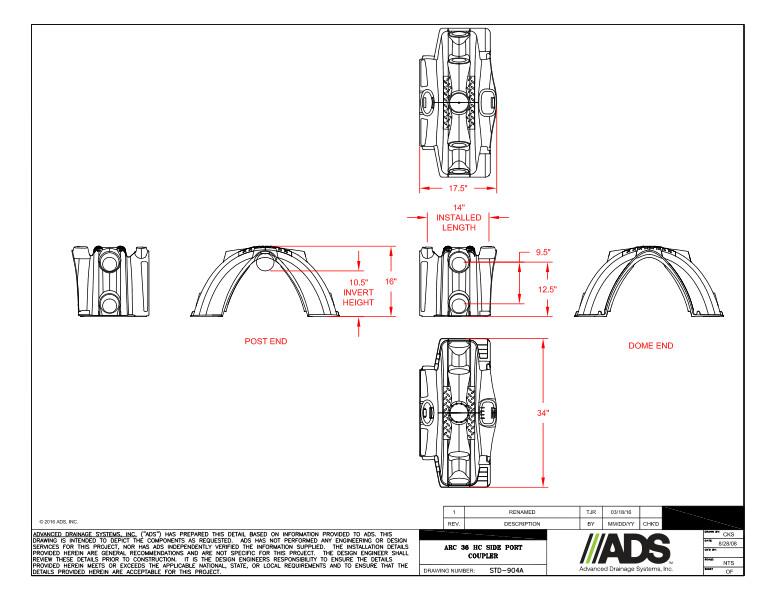

This document is the 904A Arc 36 HC Side Port Coupler Detail. Details show the coupler feed with descriptions and dimensions.

The details show the post end, dome end, 14” installed length, 10.5” invert height and various dimensions of the coupler.

904A Arc 36 HC Side Port Coupler Detail
