This document is the 8” x 60” Field Repair Coupler (HDPE Dual Wall Miscellaneous Fittings). A diagram with table provided.

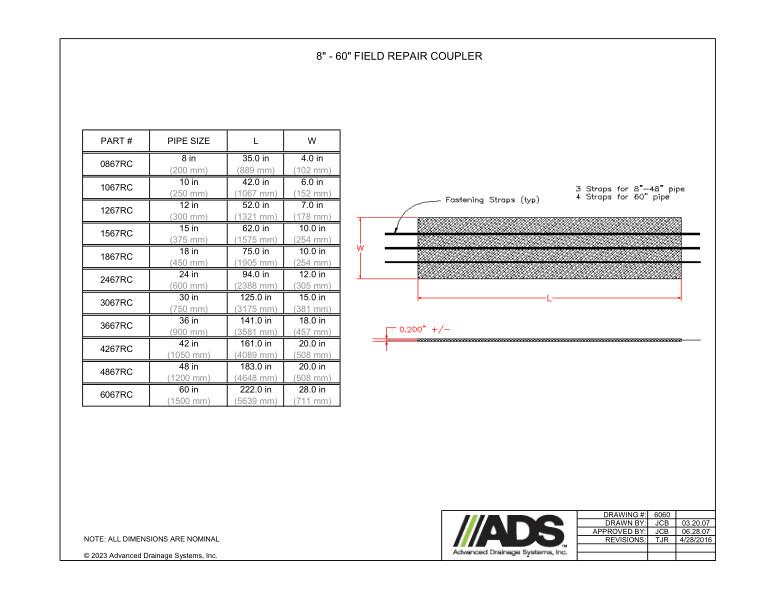

The 8” x 60” Field Repair Coupler diagram is shown with fastening straps (typ) and W/L dimensions. 3 straps for 8”-48” pipe and 4 straps for 60” pipe.

A table with the information for part number, pipe size and L/W sizes is provided.

All dimensions are nominal.
