15" Inline Drain Quick Spec Installation Nyloplast Detail
15" Inline Drain Quick Spec Installation Nyloplast Detail.pdf

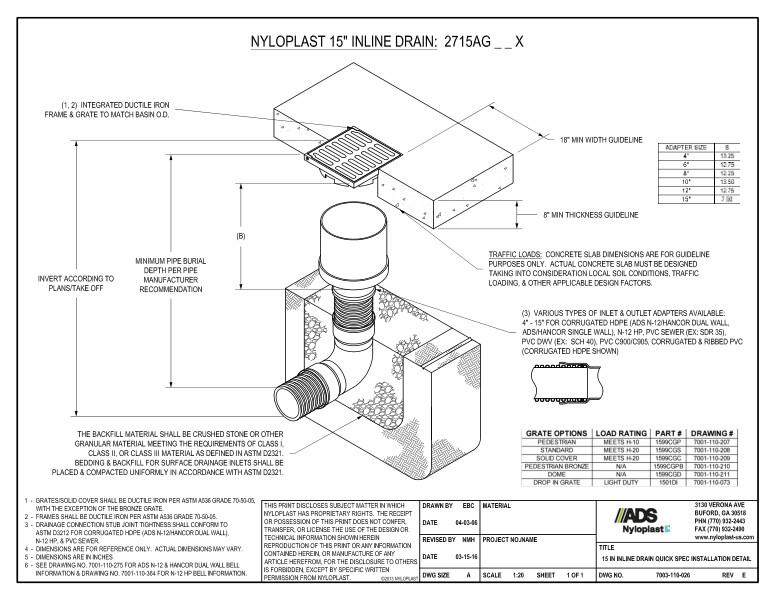

This document is the 15" Inline Drain Quick Spec Installation Nyloplast Detail. Details with dimensions and nyloplast illustrations shown.
The Nyloplast 15" Inline Drain spec shows the integrated ductile iron frame and grate to match basin, minimal pipe burial, invert according to plans/take off, width and thickness guidelines, traffic loads, back fill and various inlet and outlet adapters.
Note 1 states that grates/solid covers shall be ductile iron. Note 2 states that frames shall be ductile iron. Note 3 states that drainage connection stub joint tightness shall conform to ASTM D3212. Note 4 is dimensions are for reference only. Note 5 Dimensions are in inches. Note 6 directs to a drawing for dual wall bell information.
A chart details adapter size and B column. The second chart shows grate options, load rating, part number and drawing number.
