Sewer Gasket Bell General Dimensions Nyloplast Detail

Filename:
Sewer Gasket Bell General Dimensions Nyloplast Detail.dwg

Sewer Gasket Bell General Dimensions Nyloplast Detail

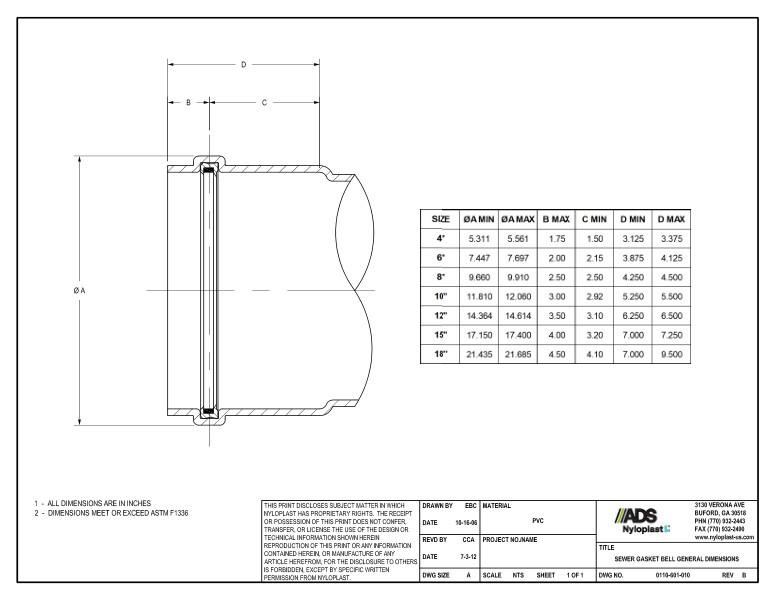

Sewer Gasket Bell General Dimensions Nyloplast Detail. Sizes, dimensions and gasket illustration shown.

Sizes 4” to 18” are listed in the chart with corresponding A MIN, A MAX, B MAX, C MIN, D MIN and D MAX lengths. An illustration showing the A/B/C/D dimensions is provided.
