3" - 10" Internal Couplers (HDPE Single Wall Fittings)

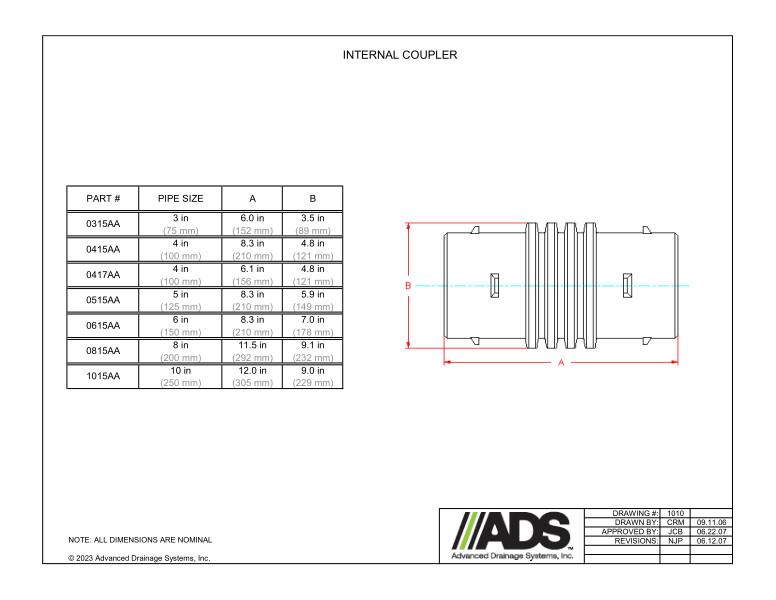

This document is the 3” – 10” Internal Couplers (HDPE Single Wall Fittings). The internal coupler detail with table shown.

The internal coupler detail shows the A/B dimensions.

A table has the values for part number, pipe size and A/B dimensions.

All dimensions are nominal.

3" - 10" Internal Couplers (HDPE Single Wall Fittings)
