30" x 12" - 30" x 15" Fabricated Reducing Wyes (HDPE Dual Wall Fabriated Wyes Fittings)
Filename:
30" x 12" - 30" x 15" Fabricated Reducing Wyes (HDPE Dual Wall Fabriated Wyes Fittings).pdf
![30" x 12" - 30" x 15" Fabricated Reducing Wyes (HDPE Dual Wall Fabriated Wyes Fittings)](https://assets.adspipe.com/m/34112b7a4bdb214e/webimage-30-x-12-30-x-15-Fabricated-Reducing-Wyes-HDPE-Dual-Wall-Fabriated-Wyes-Fittings.jpg)
This document is the 30" x 12" - 30" x 15" Fabricated Reducing Wyes (HDPE Dual Wall Fabricated Wyes Fittings). Diagrams with table provided.

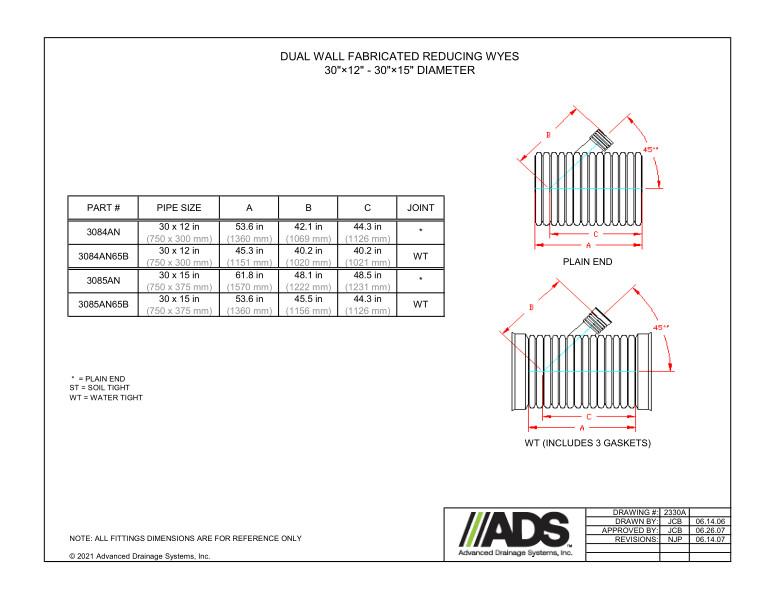

The diagram of the Dual Wall Fabricated Reducing Wyes 30" x 12" - 30" x 15" diameter shows the Plain End Wye with A/B/C dimensions and 45 degree arc. The WT (includes 3 gaskets) Wye is shown with A/B/C dimensions and 45 degree arc.
A table with part number, pipe size and A/B/C/Joint dimensions is provided.
All fittings dimensions are for reference only.
