12" - 24" StormTech Dual Wall Fabricated Soil Tight Elbows (StormTech Dual Wall HDPE Fittings)
Filename:
12" - 24" StormTech Dual Wall Fabricated Soil Tight Elbows (StormTech Dual Wall HDPE Fittings).pdf
![12" - 24" StormTech Dual Wall Fabricated Soil Tight Elbows (StormTech Dual Wall HDPE Fittings)](https://assets.adspipe.com/m/497b510f56729331/webimage-12-24-StormTech-Dual-Wall-Fabricated-Soil-Tight-Elbows-StormTech-Dual-Wall-HDPE-Fittings.jpg)
This document is the 12" - 24" StormTech Dual Wall Fabricated Soil Tight Elbows (StormTech Dual Wall HDPE Fittings). Diagrams and table included.

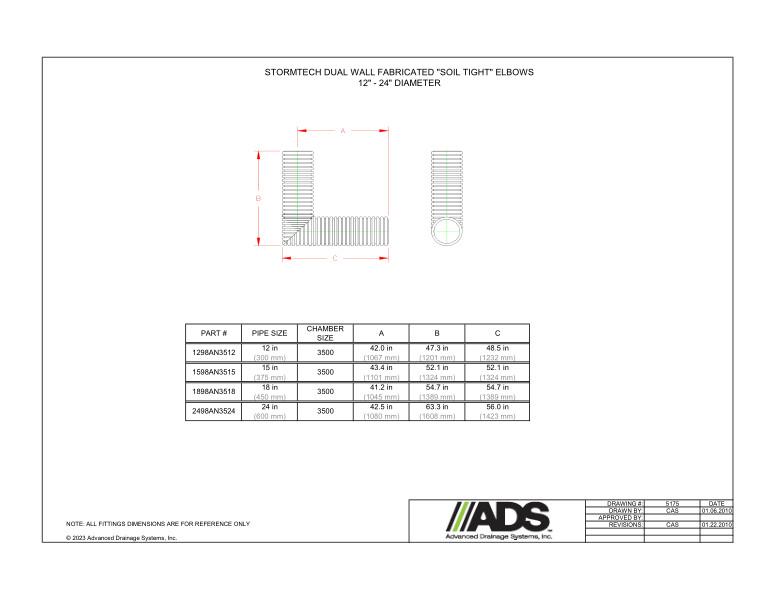

StormTech Dual Wall Fabricated “Soil Tight” Elbows 12" - 24" diameter shows the elbow side view diagram and opening diagram with A/B/C dimensions.
The table lists the part number, pipe size, chamber size and A/B/C dimension values.
All fittings dimensions are for reference only.
