12"-60" Bell-Bell Couplers (HDPE Dual Wall Couplers Fittings)
Filename:
12"-60" Bell-Bell Couplers (HDPE Dual Wall Couplers Fittings).pdf
![12"-60" Bell-Bell Couplers (HDPE Dual Wall Couplers Fittings)](https://assets.adspipe.com/m/79b339042ff3d2aa/webimage-12-60-Bell-Bell-Couplers-HDPE-Dual-Wall-Couplers-Fittings.jpg)

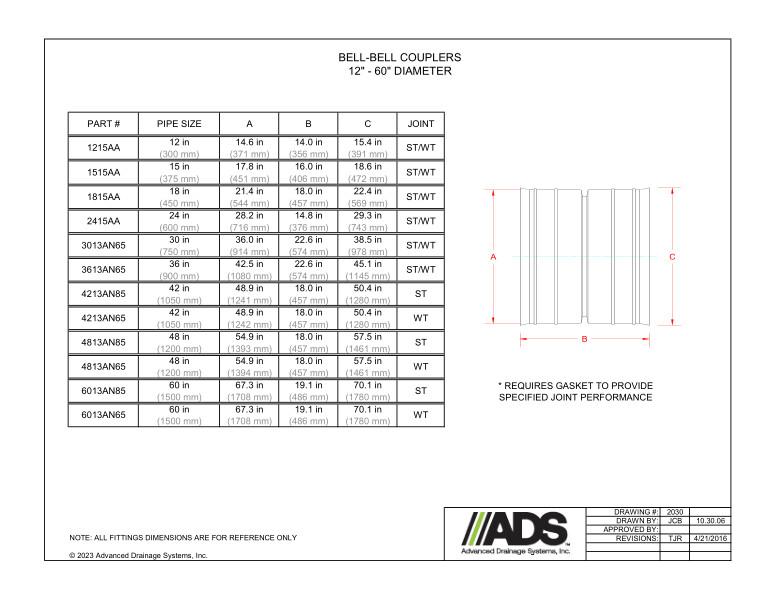

This document is the HDPE Dual Wall Couplers - Bell-Bell Couplers 12”-60” Diameter. Illustration and reference chart is shown.
The Bell-Bell Couplers 12”-60” diameter side view illustration is shown. A table with part number, pipe size and A/B/C/Joint is provided. This requires a gasket to provide specified joint performance.
All fittings dimensions are for reference only.
