30" Solid Locking Cover Assembly Nyloplast Detail
Filename:
30" Solid Locking Cover Assembly Nyloplast Detail.dwg
This document is the 30" Solid Locking Grate Assembly Nyloplast Detail. It shows illustrations with descriptions.

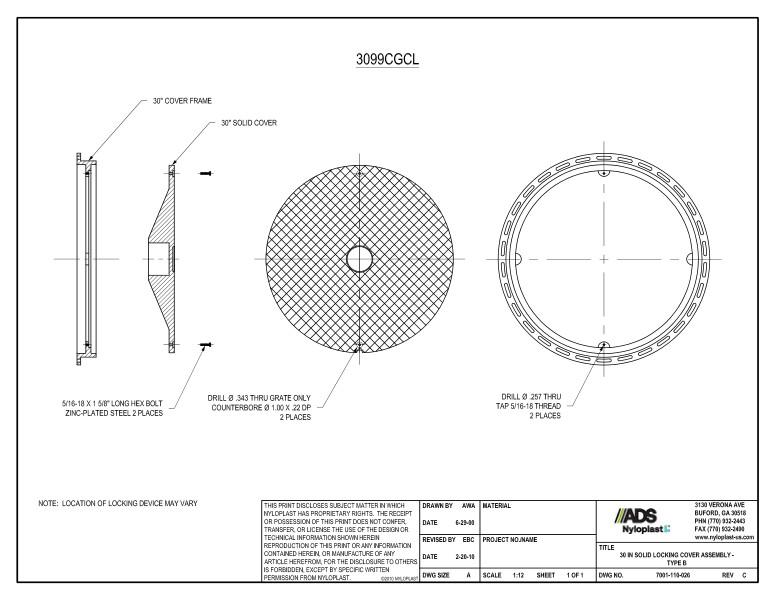

The side view illustrations show the 30” cover frame & 30” solid cover with 5/16-18 x 1 5/8” long hex bolt zinc-plated steel in 2 places. The top down view shows the grate with drill thru position and the frame drill thru thread position.
A note states that the location of locking device may vary.
