Drain Basin with Outlet Weir for Stormtech Nyloplast Detail
Filename:
Drain Basin with Outlet Weir for Stormtech Nyloplast Detail.pdf
![Drain Basin with Outlet Weir for Stormtech Nyloplast Detail](https://assets.adspipe.com/m/5ba5f2f9988215fc/webimage-Drain-Basin-with-Outlet-Weir-for-Stormtech-Nyloplast-Detail.jpg)
This document is the Drain Basin with Outlet Weir for Stormtech Nyloplast Detail. Dimensions and nyloplast illustration shown.

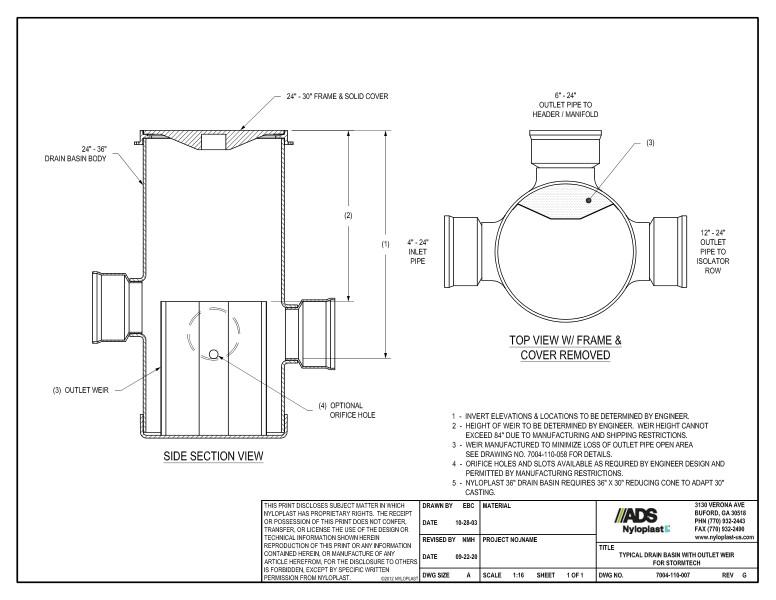

The side section view show 24” – 30” frame & solid cover, drain basin body, outlet weir and optional orifice hole. Top view with frame and cover removed details the outlet pipe to header/manifold, inlet pipe and outlet pipe to isolator row.
