ADS Barracuda 3D Design Tool

Easily configure custom Barracudaâ„¢ designs with a few simple clicks.

Hydrodynamic Separator Design Made Easy

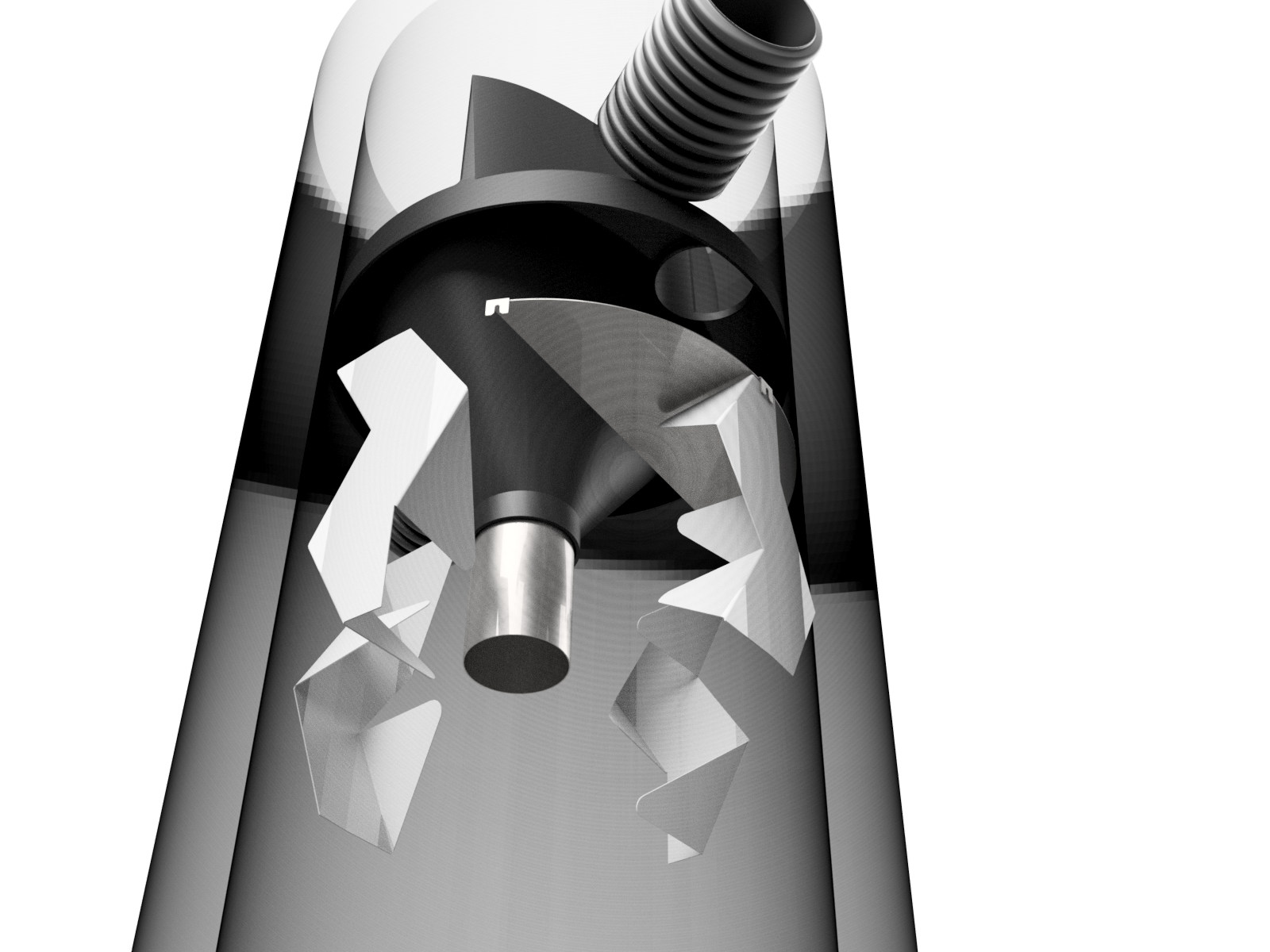

Barracuda Max - Lower Angle

Hydrodynamic Separator Design Made Easy

This Barracuda 3D design tool allows you to size and customize a stormwater separator. Determine flow rate and unit size and receive a complete submittal package in minutes.

Launch the 3D Design Tool

Take a Quick Tour

Take a Quick Tour

Our two-minute tutorial will have you well on your way to designing your next project.

Customize Every Aspect of your Separator

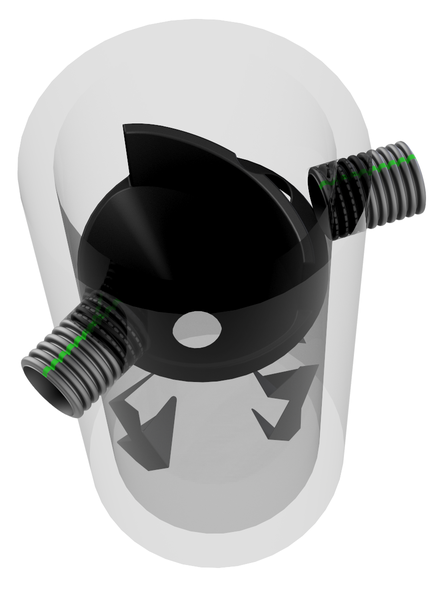

barracuda2

Customize Every Aspect of your Separator

The tool allows you to customize manhole material, elevations, pipes, angles, and cover/grate options to create your perfect solution.

Get Started Now

Accelerate Your Work with Full Support

Need some help? Email us at  onlinetools@adspipe.com to contact our team of experts.

Please allow at least 2 business days for us to respond.

Video Library

Did you know?

The Barracuda is capable of conveying 100% of the design peak flow and built to remove at least 80% of the suspended solids on an annual aggregate removal basis.
