This document is the 12” AdvanEdge End Outlet (AdvanEdge Fittings). 2 details shown with a dimension table.

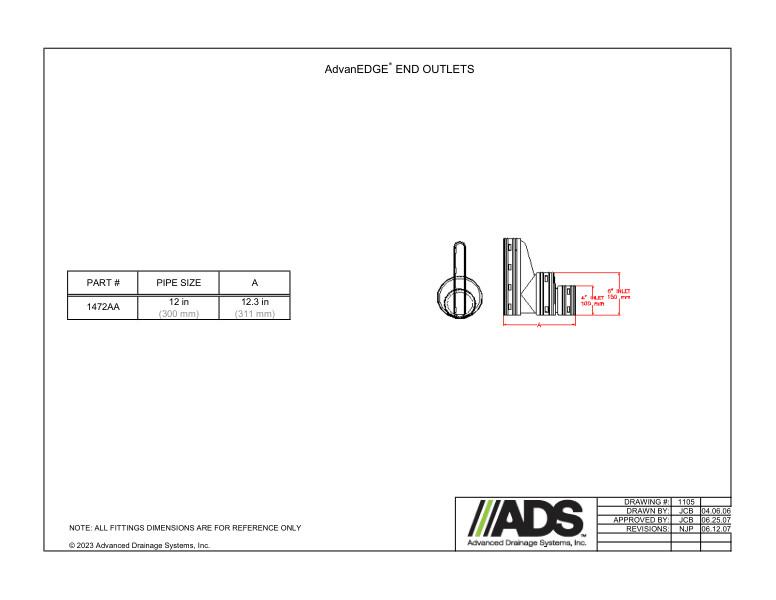

The AdvanEDGE End Outlets are shown 2 ways. The A detail has the dimensions of the inlet. A second detail is also shown.

A table is provided with the information for part number, pipe size and A dimensions.

All fittings dimensions are for reference only.
