2' x 3' Roll Curb Inlet - Left Flow Grate Assembly Nyloplast Detail

Filename:
2' x 3' Roll Curb Inlet - Left Flow Grate Assembly Nyloplast Detail.pdf

2' x 3' Roll Curb Inlet - Left Flow Grate Assembly Nyloplast Detail

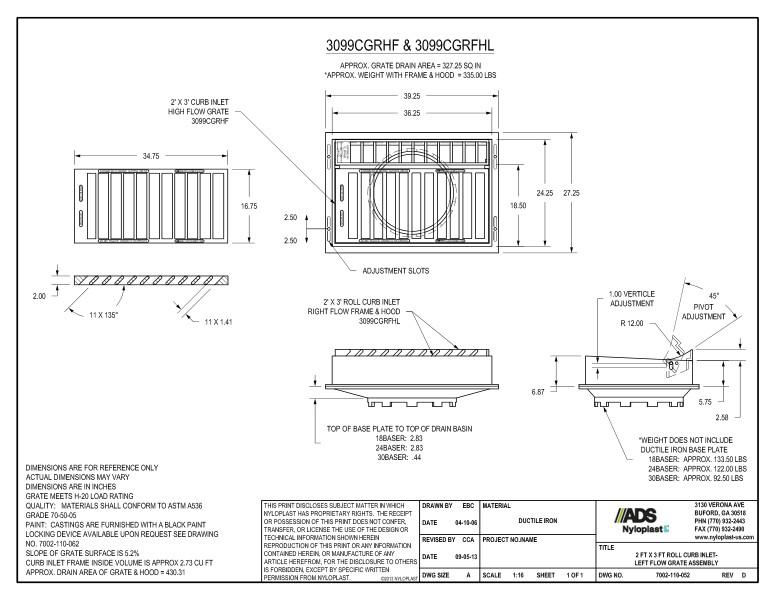

This document is the 2' x 3' Roll Curb Inlet - Left Flow Grate Assembly Nyloplast Detail. Illustrations show the various components with descriptions.

The illustrations show the 2' x 3' Roll Curb Inlet high flow grate with dimensions, adjustment slots, grate and frame. 2' x 3' Roll Curb Inlet right flow frame & hood is shown with the top of base plate to top of drain basin. The drain basin shows the verticle adjustment, pivot adjustment and dimensions.

A note mentions that materials shall conform to ASTM A536 grade 70-50-05. The castings are furnished with a black paint. Locking device available upon request. Dimensions are for reference only and in inches. Slope of grate surface is 5.2%. Curb inlet frame inside volume is approximately 2.73 cubic feet. Approximate drain area of grate & hood is 430.31.
