Natural Turf Athletic Field Drain Profile (AdvanEDGE) Detail

Filename:
Natural Turf Athletic Field Drain Profile (AdvanEDGE) Detail.dwg

Natural Turf Athletic Field Drain Profile (AdvanEDGE) Detail

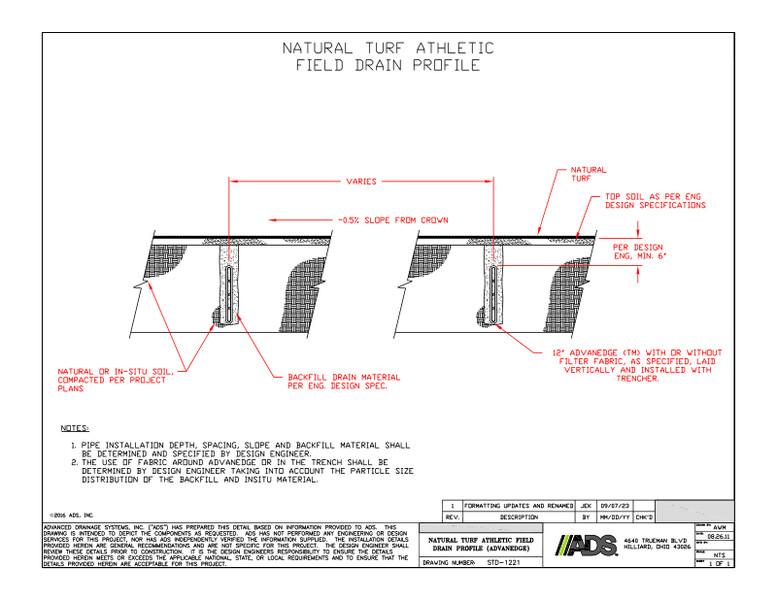

This document is the Natural Turf Athletic Field Drain Profile (AdvanEdge) Detail. Diagram with descriptions and notes provided.

The drain profile for an athletic field detail shows the natural or in-situ soil, compacted per project plans, natural turf, 0.5% slope from crown, top soil as per engineer design specifications, per design engineer, minimum 6”, 12” AdvanEdge with or without filter fabric laid vertically and installed with trencher and backfill drain material per engineer design specifications.

Notes state that pipe installation depth, spacing, slope and backfill material shall be determined and specified by design engineer. The use of fabric around AdvenEdge or in the trench takes into account the particle size distribution of the backfill and in-situ material.
