24" Adapter - HP Bell x SCH 40 Spigot Nyloplast Detail

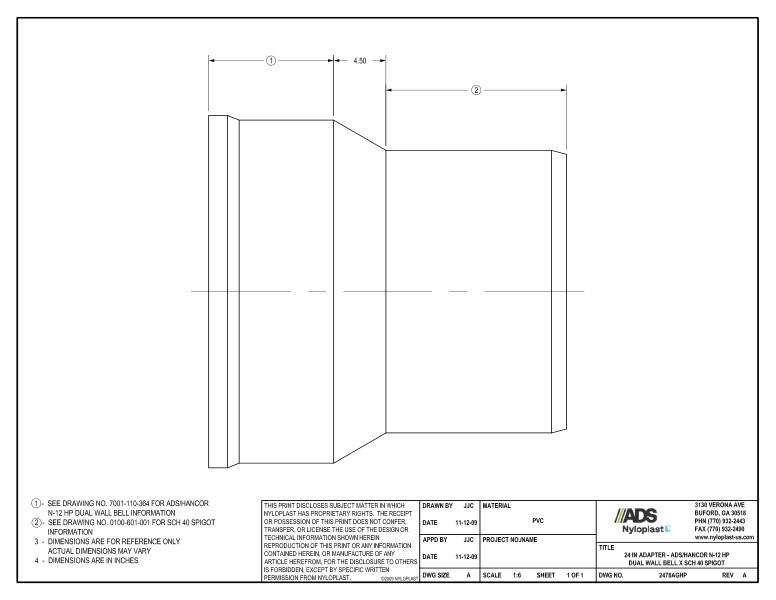

This document is the 24” Adapter - HP Bell x SCH 40 Spigot Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references ADS/Hancor N-12 HP Dual Wall Bell for more information. A note on dimension 2 references a drawing for SCH 40 spigot information. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.

An illustration showing the dimensions is provided.

24" Adapter - HP Bell x SCH 40 Spigot Nyloplast Detail
