12" Solid Locking Cover Assembly Nyloplast Detail
Filename:
12" Solid Locking Cover Assembly Nyloplast Detail.dwg
![12" Solid Locking Cover Assembly Nyloplast Detail](https://assets.adspipe.com/m/6f0594f6f7f30ccc/webimage-12-Solid-Locking-Cover-Assembly-Nyloplast-Detail.jpg)
This document is the 12" Solid Locking Cover Assembly Nyloplast Detail. It shows illustrations with descriptions.

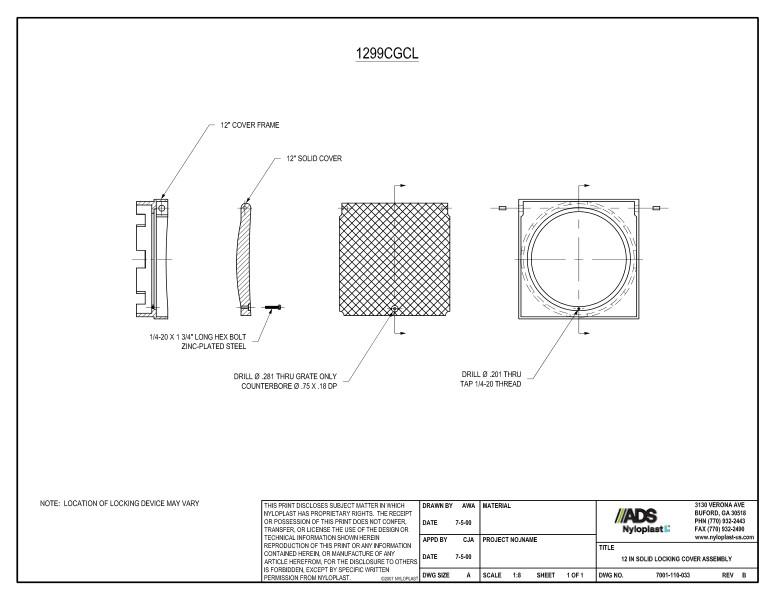

The side view illustrations show the 12” cover frame & 12” solid cover with ¼-20 x 1 ¾” long hex bolt zinc-plated steel. The top down view shows the solid cover with drill thru position and the frame drill thru thread position.
A note states that the location of locking device may vary.
