This document is the Unsanded Manhole Adapter - N-12 Dual Wall Bell x SWR Spigot Nyloplast Detail. Part numbers, dimensions and nyloplast illustration shown.

A chart details the part numbers 0477AGU, 0677AGU, 0877AGU, 1077AGU, 1277AGU, 1577AGU, 1877AGU, 2477AGU and 3077AGU with corresponding size and A/B/C/D/E dimensions.

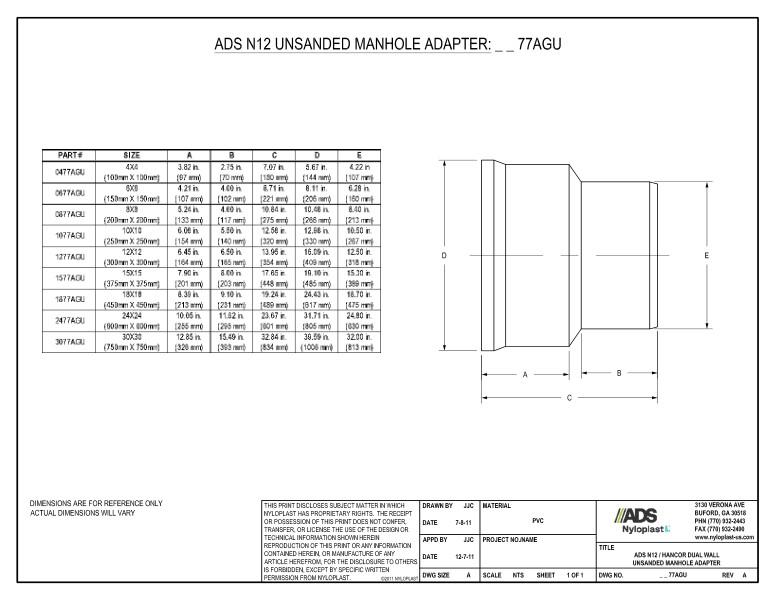

An illustration showing the dimensions is provided.

A note states that dimensions are for reference only.
